If you are looking for the best garage heaters for insulated shops, the Mr. Heater 50,000 BTU F260550 ceiling unit is our overall pick, the Dr. Infrared DR-975 is the best 240V electric option, and the Mr. Heater 30,000 BTU vent-free blue flame is the best gas heater that needs no electricity. In a shop with R-13 walls, R-30 ceiling insulation and an insulated door, size at the low end of the standard rule of 30-50 BTU per square foot.
That last sentence is the whole argument of this guide. Most garage heater roundups sort by fuel type, which is the wrong axis for a well-built shop. Insulation decides how many BTU you need, and fuel only decides how the heat arrives and what it costs to run. A 1,200 sq ft shop with good walls, a good ceiling and an insulated door can be held at a workable temperature by a 30,000-60,000 BTU unit. The same space with bare stud walls and a steel roller door can demand more than twice that.
We spent 2026‘s heating season reading owner reviews across ten heaters in this category, checking rated output against published coverage, and matching each unit to a realistic insulated-shop scenario. The Mr. Heater F260550 heats up to 1,667 sq ft, the Comfort Zone CZ230ERBK covers up to 1,250 sq ft, and the GASLAND FH12FB reaches 3,100 sq ft on its high setting. Below, you will also find the sizing math, the vented versus unvented safety rules that forum owners keep asking about, and what happens to a shop when a combustion heater adds water vapor to the room all season.
If you have not settled on a shop yet, our general garage heater roundup covers the fuel options side by side. This guide goes deeper on the insulated case.
Table of Contents
Top 3 Picks for Insulated Shops (September 2026)
Mr. Heater 50,000 BTU Unit Heater
- 50000 BTU forced air
- Heats up to 1
- 667 sq ft
- Ceiling mount
- NG to LP conversion kit included
Mr. Heater 30,000 BTU Blue Flame
- 30000 BTU vent-free natural gas
- Heats up to 1
- 000 sq ft
- Built-in thermostat
- No electricity needed
Comfort Zone CZ230ERBK
- 7500-watt 240V fan-forced
- Covers up to 1
- 250 sq ft
- Digital thermostat and remote
- 12-hour timer
All 10 Best Garage Heaters for Insulated Shops in 2026
| Product | Specifications | Action |
|---|---|---|
| Mr. Heater 50,000 BTU Forced-Air Unit Heater |
|
Check Latest Price |
 Dr. Infrared DR-975 7,500-Watt 240V Shop Heater |
|
Check Latest Price |
| Comfort Zone CZ230ERBK 7,500-Watt Ceiling Heater |
|
Check Latest Price |
 GASLAND FH12FB 125,000 BTU Propane Forced Air |
|
Check Latest Price |
 Mr. Heater 125,000 BTU Quiet Burner Forced Air |
|
Check Latest Price |
 Remington 60,000 BTU Forced Air Propane Heater |
|
Check Latest Price |
 Dyna-Glo 20,000 BTU Blue Flame Wall Heater |
|
Check Latest Price |
 ProCom ML250TPA-B 25,000 BTU Infrared Plaque |
|
Check Latest Price |
| Mr. Heater 30,000 BTU Vent Free Blue Flame |
|
Check Latest Price |

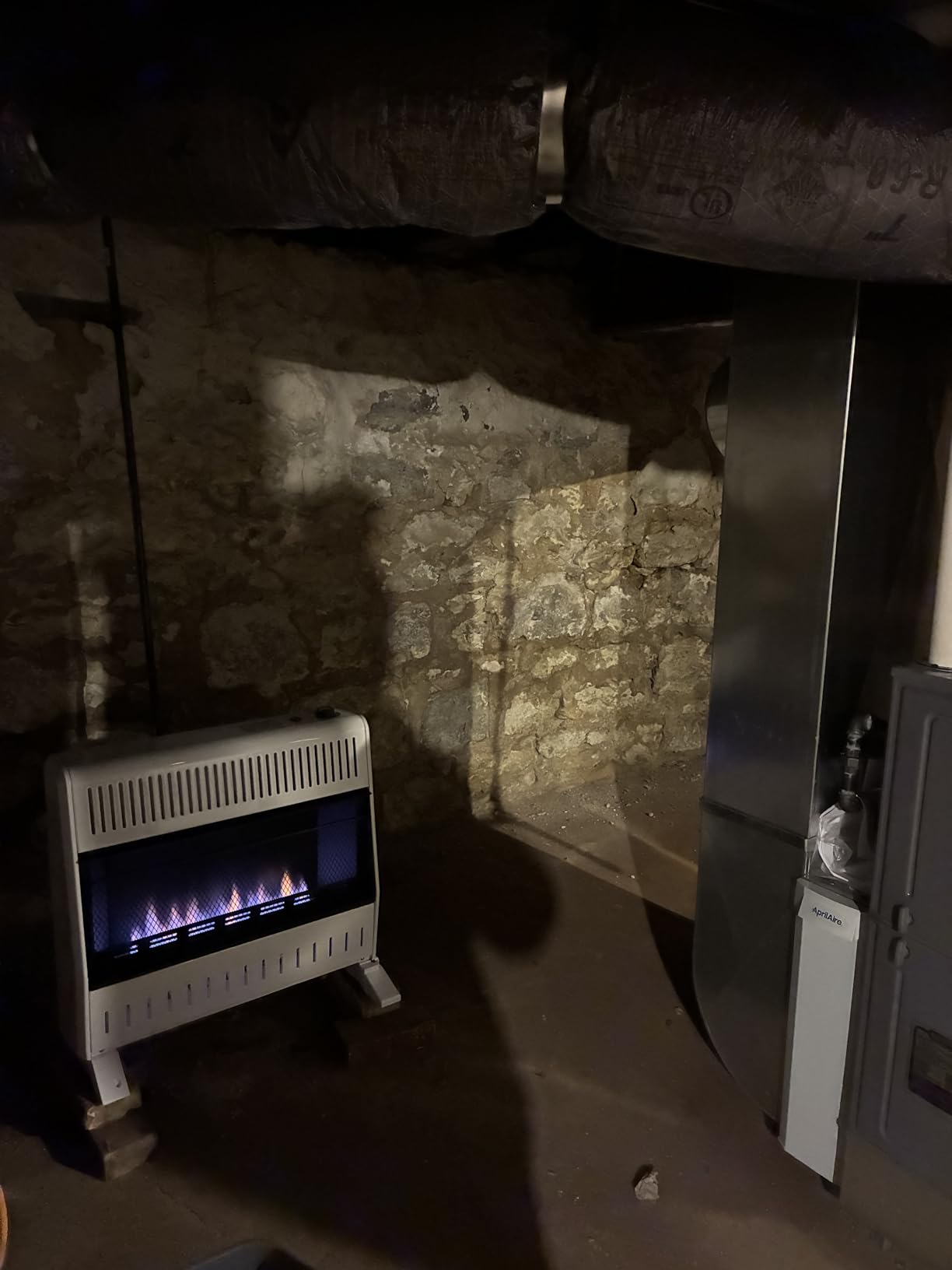

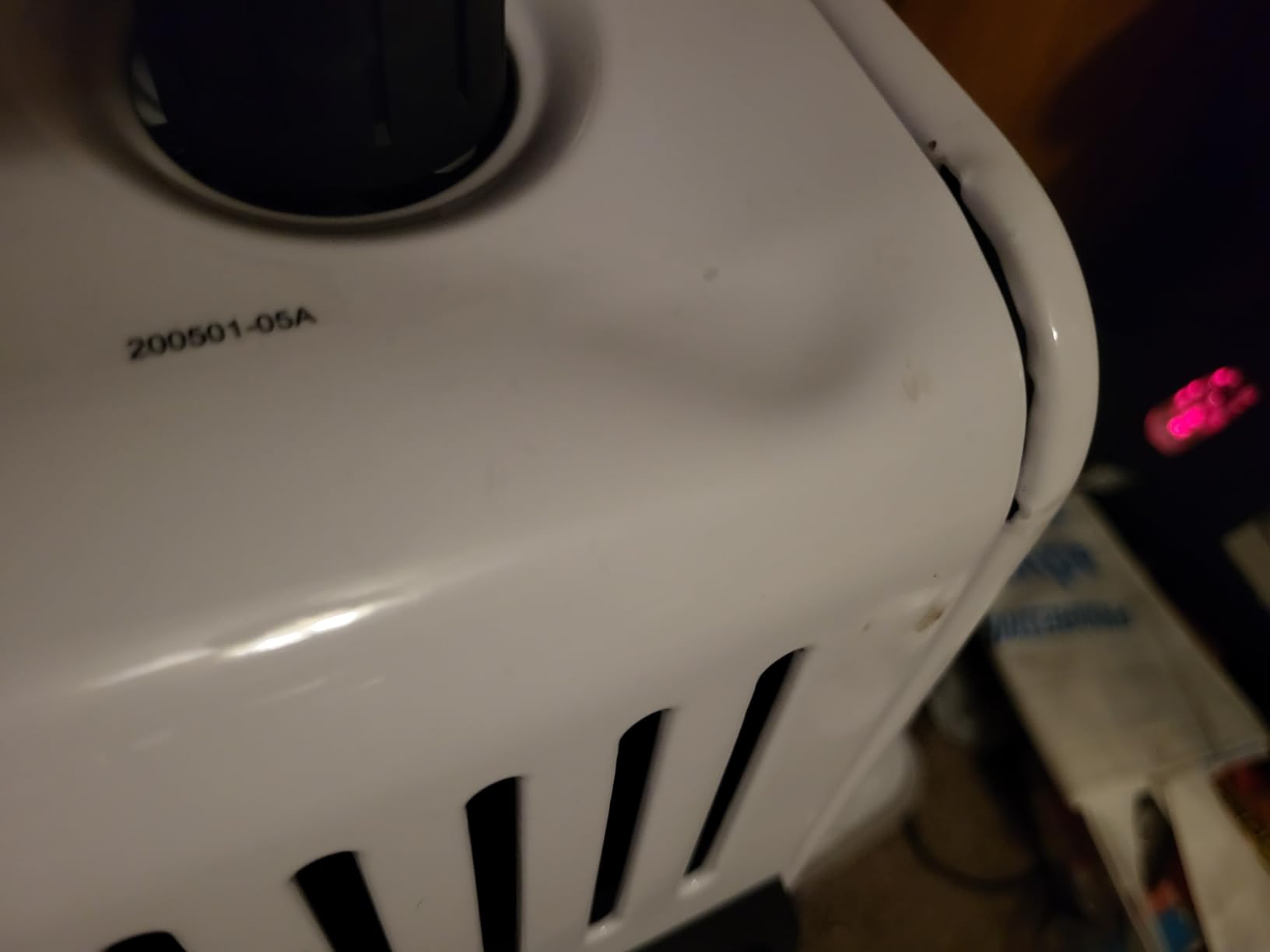

 ProCom MN300TBA-B 30,000 BTU Blue Flame |
|
Check Latest Price |
How We Chose These Shop Heaters
Every unit here is rated for indoor use, carries a listed safety system, and has enough published owner feedback to judge beyond the spec sheet. We weighed rated output against published coverage for an insulated space, then asked one question: does it hold a temperature without babysitting?
Combustion heaters with an oxygen depletion sensor or a low-oxygen cutoff scored higher than those without. So did heaters that work with a thermostat, because a shop at 60F is a shop you can work in all day, and one that only offers a high or low setting means you are either freezing or opening a window. The same goes for heaters that keep running when the power goes out.
1. Mr. Heater 50,000 BTU Forced-Air Unit Heater – Best Overall
Mr. Heater 50,000 BTU Forced-Air Unit Heater (Propane or Natural Gas)
- Heats large insulated garages in about two hours
- Quiet and even forced-air distribution
- Works with 24V and smart thermostats
- NG to LP conversion kit included
- Multi-season reliability reports
- Ceiling unit needs a gas line and vented flue install
- Loose factory fan set screw causes wobble
- Some units need the vent pitched downward
- One control-board failure report at 28 months
The F260550 is the heater I keep coming back to for a properly insulated shop. It hangs from the ceiling, throws air across the full width of the bay, and covers up to 1,667 sq ft, which is roughly a three-car footprint with a bench along one wall. Owners running it in finished 700-1,500 sq ft spaces report going from a cold morning to about 60F in around two hours.
It weighs 60.3 lb and measures 24 inch deep by 25.5 inch wide by 13 inch high, and the low profile matters in a shop where you want the racks back. The manual calls for a minimum 10 ft ceiling and 8 ft of clearance below the base of the heater, so plan the mount height before you order anything.
The two details that make this one a shop heater rather than a garage heater are the thermostat compatibility and the included conversion kit. It runs on standard 24V thermostats, including Wi-Fi models sold separately, and the box includes an NG to LP kit if your shop is off the gas grid. A modulating thermostat matters more than most buyers expect, because a 50,000 BTU burner running continuously will push the shop well past the temperature you actually want and burn fuel doing it.
Safety hardware includes a high-temperature shut-off switch and a gas safety flame sensor, and the multiple-year owner reports are the strongest thing in this roundup. The recurring complaint is installation: venting hardware is not included, and a few owners report a loose factory fan set screw that makes the unit wobble and hum until it is tightened.
What you get once it is installed
Because it is a ceiling unit with directional louvers, you control where the air lands. Owners in woodworking shops point the louvers down toward the bench rather than across the door, which keeps shavings from getting sucked into the intake and puts warm air where hands are.
It also pairs well with a 24V thermostat on a shop that only needs 55-65F. At that set point the burner cycles rather than runs, and the shop stays usable from the first cold morning through the last warm week of spring.
Where it is the wrong buy
If your shop has no gas line and no plan for one, this is not a weekend project. A licensed plumber runs the line, and the vent penetration through the roof is a separate job with its own materials, so budget for professional install before you commit to the heater.
Also skip it if your ceiling is under 10 ft. Plenty of two-car shops have 9 ft ceilings, and in that space a wall-mounted cabinet heater like the Dr. Infrared DR-975 does the same job without a roof penetration.
2. Dr. Infrared DR-975 7,500-Watt 240V Shop Heater – Best Electric Wall Mount
DR. INFRARED HEATER NEW Upgraded DR-975 7500-Watt 240-Volt Hardwired Shop Garage Electric Heater, Wall/Ceiling Mounted with Remote Controlled Thermostat White
- Fast even heat in insulated two-car garages
- Remote control from the bench
- Louvered and tiltable airflow direction
- UL/CUL listed with overheat protection
- Compact 26 lb cabinet housing
- Hardwired only with no plug-in option
- Needs 8 AWG copper and a 240V circuit
- Thermostat range is limited to 50-85F
- Dedicated circuit raises install cost
The DR-975 is the answer for an insulated shop where the last owner left an unused 240V outlet in the wall. It pulls 31.25 amps on a single-phase 240V circuit, comes in at 26 lb, and covers up to 800 sq ft, which lines up with a two-car garage or a single workshop bay that is used year-round.
Five adjustable louvers plus a tiltable mounting head mean you aim the heat at a bench or a run of floor rather than blanketing the room. The included remote is not a gimmick either; with the heater mounted at head height or above, adjusting it from the workbench is the difference between a warm shop and a cold one.
Two things to know before you buy. The thermostat range runs 50-85F, which is wide enough for a shop you want at 65F and not much else. And the heater is hardwired only, with no power cord included, so the wiring is 8 AWG copper and a properly sized breaker.
There is a 1 year limited parts and components warranty, which is short, but the heater has a long public track record. Owners with the unit in finished two-car garages report quick warm-ups, and the UL/CUL listing with overheat protection is the safety story here, since there is no combustion involved at all.
Why electric wins in a well-insulated shop
An insulated envelope changes the economics. Once the room is not losing heat through bare studs, the total heat demand falls, and at that point a fixed 7,500-watt electric heater can carry the whole load with no fuel line, no venting and no combustion byproducts.
It also means nothing is burning, so there is no carbon monoxide question and no added humidity. For a woodshop full of stacked hardwood, a shop full of solvent, or a space where a stray pilot light worries you, that is a real advantage over every propane and gas model here.
Where it is the wrong buy
It is wrong for a large bay, a pole barn, or a shop you open the overhead door on. Once the door is up, 7,500 watts disappears into the driveway. The same shop needs forced air on a burner, and at that point you are back to combustion.
It is also wrong if your panel has no spare 30-amp capacity. Running a new 240V circuit from the panel to the back wall is real electrical work, and in some shops it is the larger half of the project.
3. Comfort Zone CZ230ERBK 7,500-Watt Ceiling Heater – Best Value
- Lifts a minimally insulated shed in about ten minutes
- Quiet fan for its class
- Remote plus 12-hour timer
- Overheat sensor with auto shutoff
- Heavy gauge steel cabinet
- Ambient sensor connectors may need swapping for accuracy
- Included lag bolt is too short for drywall
- E1 fault code after heavy dust build-up
- Remote control only
- no Wi-Fi
- Support reported as unhelpful
The CZ230ERBK covers up to 1,250 sq ft on 7,500 watts, which is more coverage than the DR-975 claims for the same electrical draw. That gap is worth knowing about, and in practice owners report lifting even minimally insulated 10×20 sheds from 32F to 65F in roughly ten minutes.
It hangs from the ceiling at 23.5 lb and 12 inch deep by 16 inch wide by 13 inch high, so the footprint does not compete with bench space. The digital thermostat runs 45-95F, a wider band than the Dr. Infrared, and there is a 12-hour on/off timer for heating a shop before you arrive rather than all night.
Controls are a remote plus the digital panel, and adjustable louvers with a variable mounting angle let you steer air the same way you would a wall unit. The heavy gauge steel body is built for shops rather than living rooms, and an overheat sensor with a power indicator light handles the dusty conditions a woodshop creates.
Two practical notes from owner feedback. The included lag bolt is often too short to bite into drywall, so plan to pick up proper fasteners. And in a dusty shop, a clean air path matters, because sawdust loading is the most common reason owners report an E1 fault code.
When it beats the more expensive electric unit
Pick this one when your shop is between 800 and 1,250 sq ft, or when your ceiling is low enough that a wall unit would eat into your working height. Ceiling mounting at 13 inch high clears headroom that a wall cabinet does not.
The wider 45-95F thermostat range also helps if you use the shop for a hobby in summer and want a lower setting than the Dr. Infrared offers. The 1 year warranty against manufacturer defects is the same length as most units in this class.
When to buy something else
If you want the heater on your phone, this is not it. The remote is infrared and line of sight, so you change the temperature from within the room or you get up and walk over to the panel.
It is also a hardwired 240V appliance, same as its electric competition, so the circuit question is identical. Do not assume a 120V outlet will carry it.
4. GASLAND FH12FB 125,000 BTU Propane Forced Air – Most Versatile
GASLAND 125,000 BTU Propane Force Air Heater for Garage, Heat Up 3100 Sq.Ft
- 75000-125000 BTU adjustable output
- Two-stage output control
- Includes hose and regulator
- Only 13 lb with a steel body
- CSA certified with electronic ignition
- Overheat and flame-failure shutoff
- Needs ventilation
- combustion odor in enclosed rooms
- Requires a power outlet for fan and ignition
- Eats propane fast at the high setting
- Single-speed fan with no timer or remote
The FH12FB is one of the highest-output portable propane heaters in this group, with a top setting of 125,000 BTU and a low setting of 75,000 BTU. That two-stage control is the feature that matters most in an insulated shop, because 75,000 BTU is often the size you actually want once the space is warm.
Published coverage is up to 3,100 sq ft, which is generous even for a well-insulated building. At 13 lb and 20 inch deep by 15 inch wide by 8 inch high, it is light enough to carry between the shop and a job site without thinking about it.
It is ready to run out of the box. A 10 ft propane hose and regulator are included, so a standard 20 lb cylinder is all you need to add, and owners report roughly 5 hours of run time on a full tank at the lower setting. Continuous electronic ignition, overheat detection and a thermo-electric safety valve cover the failure modes that matter with a portable burner.
It is CSA certified and carries a 1 year warranty against manufacturing defects, with an adjustable heat angle that lets you aim the discharge away from a work surface. The thermostat-free design is the trade: you control output by choosing 75,000 or 125,000 BTU, not by dialing a temperature.
Why oversized output is not a problem here
Forums like woodbarter.com and garagejournal.com are full of shop owners debating whether to undersize a heater, and the usual answer is that you should not. A two-stage burner settles the argument, because you can run the low setting most of the time and use the high setting for the cold pull-down at the start of a shift.
The alternative is buying two heaters, one for shoulder season and one for deep cold. This one does both jobs from a single cylinder connection.
When it is the wrong buy
It needs a 115V outlet for the fan and the ignition, and it needs ventilation. Owners are clear that combustion odor is noticeable in a closed space, so an insulated shop with the overhead door down and a vehicle parked in it is not the setup this heater is for.
There is no timer and no remote. If your plan is to heat the shop while you are away overnight, add an inline switch or a rated timer before you buy.
5. Mr. Heater 125,000 BTU Quiet Burner Forced Air – Best for Large Shops
Mr. Heater 125,000 BTU Quiet Burner Technology Forced Air Propane Heater
- Quiet Burner Technology cuts noise about 50% versus a standard propane heater
- Warms a 1400-1600 sq ft garage in 15-20 minutes
- Starts reliably in very cold weather
- 17.3 lb with a heavy-duty handle
- Split barrel design simplifies maintenance
- High and low settings only
- no modulating control
- Combustion odor needs ventilation
- Burns propane faster than smaller heaters when run continuously
- Arc igniter clicks after the unit lights
This is the one to buy if you are working ten feet from the heater. Quiet Burner Technology cuts the burner noise roughly in half compared with a standard propane forced-air unit, and at 125,000 BTU with 3,125 sq ft of published coverage, it still has the output to pull a large insulated shop up to temperature fast.
Owners report a 1,400-1,600 sq ft garage reaching usable temperature in 15-20 minutes even in single-digit weather. It starts reliably in cold conditions, which matters more than it sounds, because a unit that will not light on a January morning is worth nothing.
It weighs 17.3 lb and measures 21.5 inch deep by 12 inch wide by 16.75 inch high, and the heavy-duty handle plus the floor-mount layout mean one person can reposition it. The 10 ft hose and regulator are included, and a high-temperature limit switch adds the expected burner safety shutoff.
Maintenance is where the split barrel design earns its keep. The barrel splits so you can clean the burner and the fins without pulling the whole unit apart, which matters a lot in a dusty woodshop where a dirty heat exchanger costs you efficiency and eventually your warranty claim.
How to control it properly
The only settings are high and low, so you need a thermostat to get the duty cycle right. Owners who put this on a 24V thermostat and cycle it report much better fuel economy than buying a larger heater, and the fuel cost follows.
Ventilation is the other requirement. The combustion odor is noticeable, and in a closed shop the water vapor adds up over a season. Open a high vent or crack the door when you first fire it up in a sealed space.
When it is the wrong buy
Do not choose it for a 600 sq ft insulated shop. You will overheat the space and spend propane to do it, and without modulating control you cannot trim the output down to what the room actually needs.
It also needs a power source for the fan and ignition, so it is not an outage heater despite the portable form factor. The GASLAND FH12FB also needs power, so if you want something that runs with no electricity at all, look at the gas and ventless infrared models further down.
6. Remington 60,000 BTU Forced Air Propane Heater – Budget Pick
- Warms an insulated two-car garage in about ten minutes
- Lightest unit here at 11 lb
- Electronic ignition starts quickly
- Thermocouple plus flame-out fuel cut-off
- Good value for straightforward forced air
- Very loud during operation
- Power cord is very short
- LP fitting can be hard to thread on
- Continuous ignition adds a steady click
- Some units arrive broken or will not stay lit
The Remington REM-60V-GFA-O is the most straightforward 60,000 BTU forced-air propane heater in the group, and for a 1,200-1,500 sq ft insulated shop it is genuinely enough. Owners with insulated two-car garages report usable heat in about ten minutes, which is the number that matters on a cold morning.
At 11 lb it is the lightest heater in this roundup, and the 19 inch deep by 7.5 inch wide by 13 inch high body is narrow enough to sit against a wall or on a bench. Variable heat settings and an adjustable height let you tune the output and the aim without buying a second model.
Safety is handled properly for a portable burner: a thermocouple, a high-temperature limit shutoff and a flame-out fuel cut-off, with continuous electronic ignition for reliable starts. A 10 ft LP cylinder hose and regulator are included, and a heat-sensitive indicator sticker on the tube tells you when the hose has been near enough to the burner to matter.
The 1 year limited warranty is standard for the category. The propane tank is sold separately, so add a 20 lb cylinder to your setup list rather than assuming one is in the box.
Who will be happy with it
Buy this if the shop is roughly 1,200-1,500 sq ft, you heat it in bursts at the start of a work session, and you are not sitting directly next to the unit. Ten-minute warm-ups and simple mechanical settings are exactly what a weekend project shop needs.
It is also a good loaner or backup heater to keep in the corner of a bigger shop, since it weighs 11 lb and one person can move it to wherever the cold spot is.
Who should pass
Pass if noise matters. This is the loudest complaint in the reviews, and several owners returned units purely because the running noise was unacceptable in a workspace where they work all day.
The power cord is also very short, so plan on an extension or a longer cord, and expect a steady clicking sound from the continuous ignition. If either of those bothers you, the Mr. Heater F271390 is the quieter portable option.

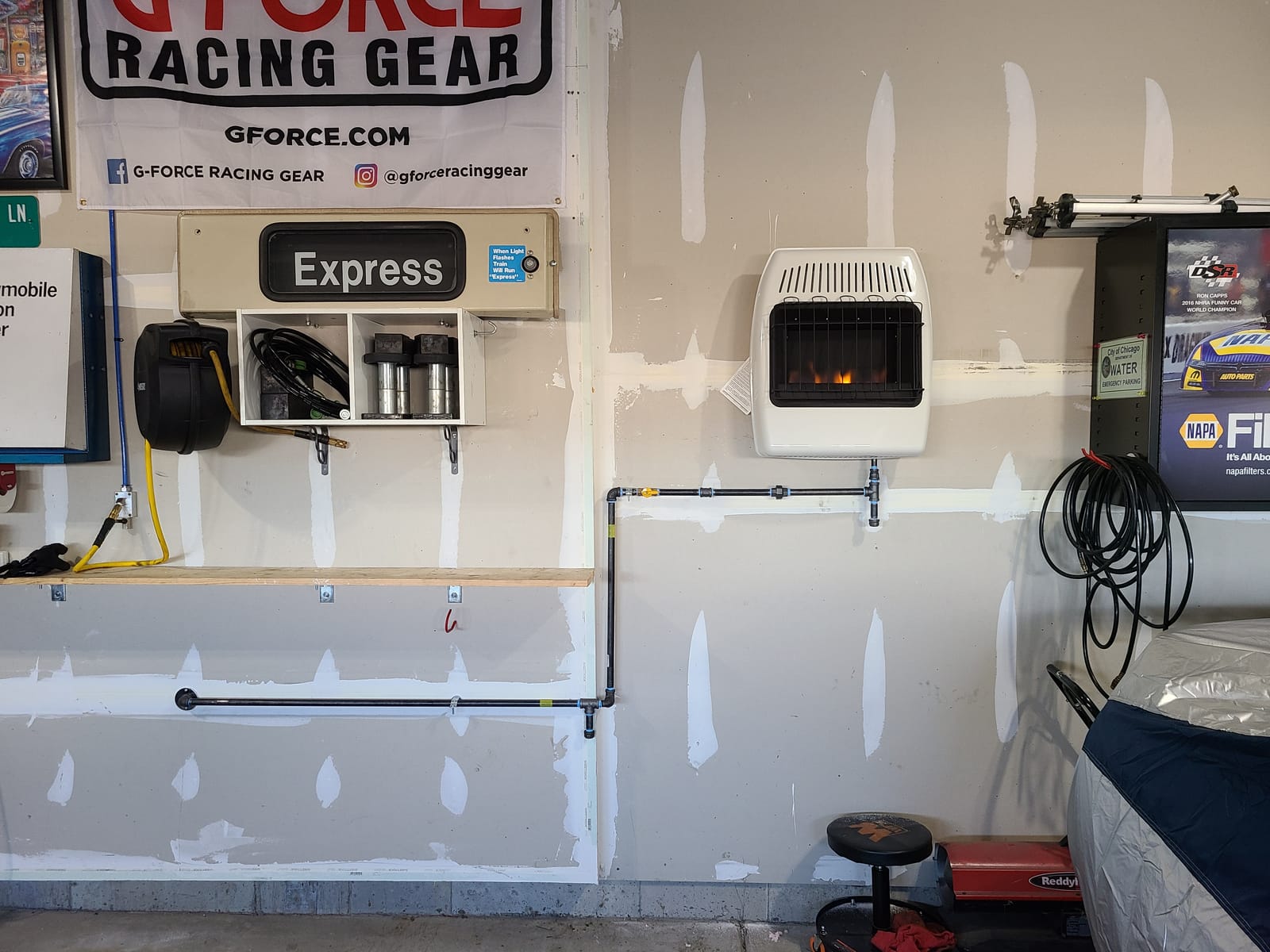

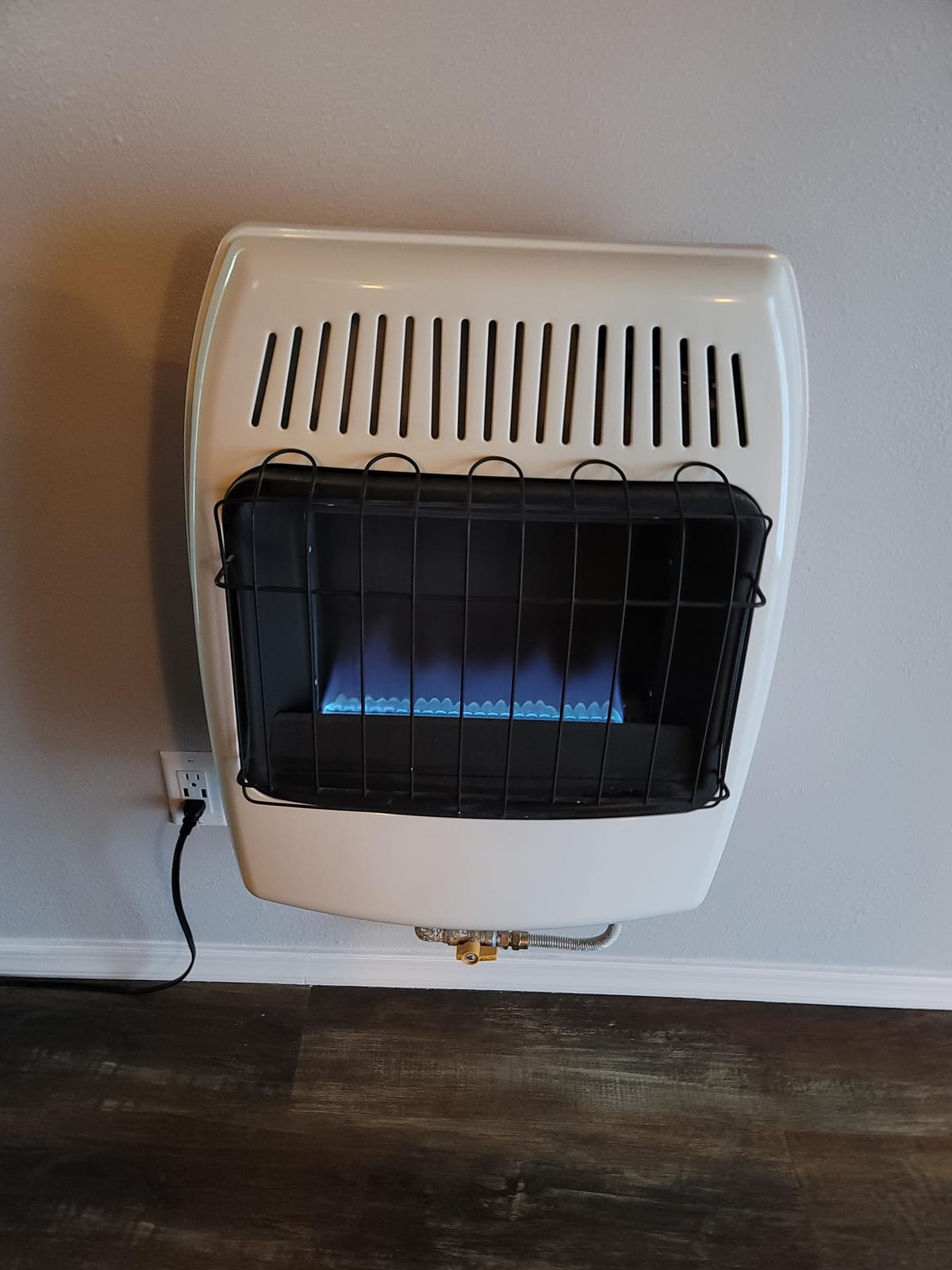

7. Dyna-Glo 20,000 BTU Blue Flame Wall Heater – Best for Supplemental Heat
Dyna-Glo 20,000 BTU Natural Gas Blue Flame Vent Free Wall Heater
- Silent blue flame operation with no fan
- Works with no electricity at all
- Simple installation with clear instructions
- Constant even heat instead of a blast
- Three output levels
- Lowest output here at 20000 BTU
- Three preset levels are hard to tell apart
- Natural gas only with no conversion permitted
- Vent-free design needs good ventilation
- One report of a fire after about a year
Blue flame heaters behave nothing like forced-air units, and that is the entire appeal. Instead of blasting air and letting the room sort itself out, the Dyna-Glo BF20NMDG-4 heats the air the way a central system does, so temperatures stay even and there is no fan noise at all.
Output is variable across three positions: 10,000, 15,000 and 20,000 BTU, with published coverage up to 700 sq ft. For an insulated 700 sq ft shop that only needs a comfortable working temperature, that is a real option rather than a compromise.
It needs no electricity, which makes it the only heat source in this roundup that keeps a shop workable through a power outage with nothing added. The wall mounting is straightforward, and at 20.2 lb the unit is easy to handle and position. Owners frequently use it in basements, cabins and three-car garages as secondary heat.
Two limitations to plan around. This specific model is manual rather than thermostatically controlled, so the three-position knob is the whole control scheme. And it is natural gas only; the manufacturer does not permit conversion to propane, so it is off the table for a shop without a gas line.
Where a blue flame heater earns its place
Vent-free blue flame units add humidity as they heat, which is a real benefit in a winter shop with a concrete slab and a wood interior. The moisture keeps wood from drying out and splits, and it counters the dryness that makes a heated shop uncomfortable in January.
Because there is no fan, it is also the right choice for a shop next to a wall or above a bedroom. A forced-air unit that size is audible everywhere; this one is not.
Where it falls short
It cannot heat a large shop on its own. At 20,000 BTU, this is supplemental or small-space heat, and anyone expecting it to carry a 1,200 sq ft insulated bay will be disappointed by the result.
Vent-free combustion also means you need ventilation, and a working carbon monoxide detector is not optional in a space attached to a house. If you want gas heat with a proper thermostat and more output, the Mr. Heater F299731 is the closer fit.
8. ProCom ML250TPA-B 25,000 BTU Infrared Plaque – Best Outage Backup
ProCom Heating Liquid Propane Ventless Infrared Plaque Heater With Base Feet – 25,000 BTU, T-Stat Control – Model# ML250TPA-B
- Handles an 800 sq ft garage on its own
- Runs with no electricity during outages
- Thermostat with high
- medium and low
- Wall mount hardware and base feet both included
- ANSI certified with an oxygen depletion sensor
- First startup needs a long pilot hold with heavy smoke
- Propane connector hardware not included
- All five panels light together
- Some units stopped firing within weeks
- Unvented propane adds humidity and a faint scent
- Lowest rating here at 4.1
Infrared plaque heaters warm objects and bodies directly rather than heating the whole air volume, which is why the ProCom ML250TPA-B feels warmer at the bench for the same rated output. At 25,000 BTU it is rated to cover up to 1,150 sq ft, and several owners report it handling an 800 sq ft insulated garage on its own.
The practical case for this one is outages. It needs no electricity, so a winter ice storm does not leave your shop at 35F with a dead thermostat and a cold slab. Push-button ignition starts it, and the built-in pilot oxygen depletion sensor shuts it down on low oxygen or carbon monoxide.
It is thermostat controlled with high, medium and low settings, unlike most infrared plaques in its class. The slim profile, 8 inch deep by 26.63 inch wide by 23.5 inch high at 26 lb, lets you mount it on the wall with the included hardware or stand it on the base feet and move it with the season.
Plan for the first start. Owners report holding the pilot knob for several minutes while factory oil burns off, with heavy smoke early on. That is normal for this design, but it surprises people who expected a quick light. You also need to buy the propane connector hardware separately, since it is not in the box.
How to use infrared heat in a shop
Point it at the work zone, not at the ceiling. Infrared warms a bench, a person and a stack of material, then the shop air follows. That is why a 25,000 BTU plaque can feel effective in a space that looks larger than 1,150 sq ft.
It also adds humidity, which helps in a dry winter shop and is a reason to keep a small dehumidifier available in shoulder season. The cost is that all five panels light together, so there is no per-panel control over where the radiant energy lands.
When to choose something else
This is the lowest-rated heater in the roundup, and the durability feedback is the reason: a cluster of owners report units that stopped firing within weeks or months and would not relight after cleaning. If your shop depends on one heater all winter, we would steer you toward the gas ventless models instead.
It is also unvented propane in an enclosed space, so use it where the shop is well ventilated and keep a carbon monoxide detector on the wall near the unit.
9. Mr. Heater 30,000 BTU Vent Free Blue Flame – Best Natural Gas Value
- Built-in adjustable thermostat
- Works through power outages with no electricity
- Low oxygen safety shut-off
- Wall mounting hardware included
- Very large installed base and review history
- Vent-free gas adds humidity and needs ventilation
- Blower fan kit sold separately
- Natural gas only
- a gas line must be run
- Isolated reports of a burned board
The F299731 has more owner history behind it than anything else in this guide, and that is not a small thing when you are putting a heater in a shop you work in every winter day. At 30,000 BTU it covers up to 1,000 sq ft, which is the middle of the range for a properly insulated two-car or small commercial shop.
It runs on natural gas with a built-in adjustable thermostat, so unlike the manual-control blue flame option it holds temperature on its own. Battery-operated electronic ignition is included, and the unit needs no electricity and no outdoor venting at all, which removes two of the three installation headaches in this category.
A low oxygen safety shut-off is built in, and wall mounting hardware is in the box. It weighs 24.7 lb and measures 30 inch deep by 13 inch wide by 28 inch high, so plan for a wall with about 30 inches of depth, typically above a workbench or near the ceiling of a low bay.
If you want moving air, the optional blower fan kit is sold separately, which is the one real gap. A vent-free convection heater does not distribute the way a forced-air unit does, so in a long shop the near end gets warmer than the far end until you add the fan.
Why a natural gas line changes the math
For a shop that already has gas, this is the sensible base heat, and it stays on through an outage. Forum owners on woodbarter.com and garagejournal.com consistently describe gas units as the practical answer once a line exists, and this model is the most widely owned example of that.
Because it is vent-free, there is no roof penetration to patch. Installation is a gas line connection and a wall bracket, and the 1 year limited warranty is short but the failure rate reported in reviews is low for its size class.
When it is the wrong buy
No propane conversion, so a shop without a gas line should look at the propane forced-air models instead. And in a large open bay, a convection heater without the optional blower will leave you working around the temperature gradient.
Also note the humidity trade. Vent-free natural gas puts water into the room all season, which is a benefit for wood and a problem for condensation on cold metal. If your shop is full of steel, plan dehumidification for spring.
10. ProCom MN300TBA-B 30,000 BTU Blue Flame – Best for Small Gas Shops
ProCom Heating Natural Gas Ventless Blue Flame Heater With Base Feet – 30,000 BTU, T-Stat Control – Model# MN300TBA-B
- Coverage of up to 1400 sq ft at 30000 BTU
- Thermostat with high
- medium and low
- No electricity needed so it works in outages
- Slim profile fits tight spaces
- Wall hardware and base feet both included
- One report of a strong coating odor when heating
- Vent-free design requires ventilation
- Base feet instructions are unclear
- Initial factory smell on first use
- Natural gas only
The MN300TBA-B publishes a 1,400 sq ft coverage figure at 30,000 BTU, the strongest coverage claim of the two 30,000 BTU natural gas heaters in this roundup. In an insulated shop, that ratio is what you want, and owners report it heating a second floor of a 100-year-old farmhouse quickly, which says a lot about its headroom.
Controls are a T-stat thermostat with high, medium and low settings rather than a fixed-output knob, so it holds a set temperature on its own. It needs no electricity, and a push-button ignition with a built-in pilot oxygen depletion sensor handles both the power and the carbon monoxide side of the safety question.
The slim profile, 8 inch deep by 29 inch wide by 28 inch high, is useful in older shops where a deeper box will not fit above a bench. Both wall mounting hardware and base feet are included, so you can decide later where it belongs. It is ANSI certified.
One owner reported a persistent metallic or chemical odor from the factory coating that lingered even after burn-off, while a gas detector read clean. If you are sensitive to that, ask about a replacement unit rather than assuming every unit will behave the same way. Most owners describe the heat as strong and even with simple controls.
Where it earns its spot
Choose it when you have a gas line, a space up to about 1,400 sq ft that is reasonably insulated, and you want a thermostat without a control module wired in. Gas is the lowest-cost fuel per hour of heat of the three options, and the unit keeps running when the power does not.
It is also a good match for a workshop that is not a full-time shop, where you want heat that comes on by itself at 7am on a Saturday and shuts down when you are done, without touching a dial.
When it is the wrong buy
It is vent-free, so the ventilation and humidity rules from the other gas models apply in full. Shops full of cold steel, or attached spaces, need a carbon monoxide detector and some plan for moisture in spring.
The base feet instructions are also confusing about which holes to use, so allow a few minutes and a flashlight. And with a smaller review history than the Mr. Heater F299731, it is a less proven pick for a shop that depends on one heater all winter.
BTU Sizing for an Insulated Shop
The standard rule is 30-50 BTU per square foot of floor area, and every number in this roundup falls out of that range. What the rule does not tell you is where on the scale to land, and that is decided by your insulation, not by your square footage alone.
An uninsulated pole barn or a garage with bare studs and a steel door sits at the top of the range or beyond. A shop with R-13 walls, R-30 ceiling insulation and an insulated door sits at the bottom, typically 30 BTU per square foot. That single change is the difference between needing a 60,000 BTU heater and needing a 100,000 BTU one.
Ceiling height adjusts it further. Add roughly 10% more BTU for each foot of ceiling above 8 ft, because warm air that starts high has more volume to fill before it mixes with the air at bench level. A 14 ft ceiling bay is a different heat problem than a 9 ft one, and that is where an overhead radiant heater starts to make more sense than a floor-level unit.
For a 24×24 shop, that is 576 sq ft. At 30 BTU per square foot you are looking at roughly 17,000 BTU of steady load, which the Dyna-Glo BF20NMDG-4 and the ProCom ML250TPA-B both cover, and a pull-down capacity north of 30,000 BTU to recover after the door opens. For a 20×30 insulated shop at 600 sq ft, the same math gives about 18,000 BTU steady and a 40,000-60,000 BTU unit, which is where the Mr. Heater F260550 earns its place.
On the question forum owners keep arguing about, undersizing is the wrong call. A heater that is too small runs continuously, never reaches temperature and works harder than one that cycles. Size to the load, then control the load with a thermostat, and the duty cycle takes care of itself.
Insulate First, Then Buy Smaller
This is the part no competing roundup organises its advice around, and it is the most valuable thing you can do in a shop. Air changes, not heat loss, is what makes a leaky garage expensive, and a leaking garage can never be fully conditioned no matter how large a heater you buy.
Three moves do most of the work: R-13 batt insulation in the walls, R-30 in the ceiling, and an insulated door section in the overhead door. Once those are in place, the heater you need drops a size or two, and the fuel bill drops with it for the life of the shop.
Start with the ceiling. Rising heat escapes through the ceiling faster than through walls, so ceiling insulation alone usually buys the biggest reduction in load. If you are standing in the shop in February and the ceiling feels no warmer than the walls, that heat is leaving through the roof.
Propane vs Natural Gas vs 240V Electric
Propane is the easiest fuel to start with because it needs no line work. The cost per hour is high, so propane makes sense for seasonal use, spot heating and shops that only need the chill taken off. All four propane models here are portable, which means you can move the heat to whichever bay is in use.
Natural gas costs far less per hour of heat and keeps running when the power fails, but it requires a gas line and a licensed install, and every gas model here except the ceiling unit is vent-free or needs venting review. Electricity is the cleanest and the quietest, with no combustion and no humidity added, but it is limited by what your panel can supply and it dies in an outage.
For a year-round insulated shop with a gas line already in place, natural gas wins on cost and reliability. For a shop with no gas and a spare 30-amp circuit, the 240V electric units cover up to 1,250 sq ft at a very high efficiency. For everything in between, propane is the flexible answer, and running it on a thermostat with a timer keeps the hourly rate from running away.
Vented vs Unvented Heater Safety in a Closed Shop
Every combustion heater here falls into one of two camps, and this is the single most important safety distinction in the category. A vented heater sends combustion gases outdoors through a flue or a power vent. An unvented heater discharges those gases into the room, which is why every unvented model in this roundup carries an oxygen depletion sensor or a low-oxygen cutoff.
Vent-free units also produce water vapor. Owners on woodbarter.com and jalopyjournal.com describe propane heaters putting out a surprising amount of water, and the practical consequence is condensation on cold metal, rust on tools, and moisture in a wood pile. If you run one, plan on a small dehumidifier for the shoulder months.
Regardless of type, put a working carbon monoxide detector on the wall inside the shop and keep it within a few feet of the breathing zone, not on the ceiling. Keep propane cylinders outside the building in a location with no ignition sources, never in a shop with a running engine, and keep a rated fire extinguisher by the door rather than beside the heater.
Clearance matters too. Follow the manufacturer mounting heights exactly, which on the ceiling unit means a 10 ft minimum ceiling and 8 ft of clearance below the base of the heater, and keep the intake clear of sawdust. Forum threads on spiuserforum.com and reddit.com/r/Calgary are full of avoidable safety anxiety, and most of it comes from people running a burner in a sealed space with the overhead door down.
Condensation and Cold Slab Floors
The most common complaint in shop-heater forums is not heat output, it is water. Any fuel-heated shop needs attention here in spring, when a slab that has been warm all winter meets air that is suddenly cold and damp.
Raise the shop temperature gradually in the fall rather than firing a 60,000 BTU burner into a 35F room, because the faster the surface temperature moves, the more condensation forms. Keep the slab warmer than the air, which is what a low-output base or blue flame heater does naturally, and run a dehumidifier once the door is open and the outside humidity climbs.
For people who work the cold end of a shop, dress for it. Our insulated coverall roundup covers the layer you wear while the heater warms the ceiling and the slab stays cold. If you are doing wet jobs in that same cold shop, our insulated bib roundup covers the waterproof outer layer that keeps wind and spray off over the top of it.
Frequently Asked Questions
How many BTU do I need to heat a 24×24 garage?
A 24×24 garage is 576 square feet. In a well-insulated shop with R-13 walls, an R-30 ceiling and an insulated door, plan on about 30 BTU per square foot, so roughly 17,000 BTU of steady load and a 30,000-40,000 BTU unit for fast recovery after the door opens.
How many square feet will a 50,000 BTU garage heater heat?
A 50,000 BTU forced-air unit heater is rated for up to 1,667 square feet, which is roughly a three-car garage footprint. That rating assumes a reasonably insulated space. In a bare, uninsulated shop the same heater will feel undersized, and in a tight insulated one it will be more than enough.
What is the most efficient propane heater for a garage?
Efficiency comes from sizing and control rather than from the burner alone. The best propane option here is a model with adjustable output, because you can run the lower setting once the shop is warm instead of heating at full output continuously. A thermostat or inline timer on the heater is the single biggest fuel saving available.
What are the best forced air propane heaters for a garage?
The strongest forced air propane models in our testing are the GASLAND FH12FB for 125,000 BTU with two-stage output, the Mr. Heater F271390 for quiet 125,000 BTU operation, and the Remington REM-60V-GFA-O for 60,000 BTU in an insulated shop. All three include a hose and regulator.
Is it safe to heat a garage with a propane heater?
It is safe when the heater has an oxygen depletion sensor, the space is ventilated, and a working carbon monoxide detector is installed inside the shop. Run a propane heater with the overhead door cracked or a high vent open, keep the cylinder outside the building, and never run a combustion heater in a closed space with an idling engine.
Does ceiling height affect how many BTU I need?
Yes. Add roughly 10% more BTU for each foot of ceiling height above 8 feet, because warm air starts high and has more air volume to mix with before it reaches bench level. A high-ceiling bay may also suit an overhead radiant heater, since radiant delivery puts heat where people and benches are instead of at the ceiling.
Conclusion: The Best Garage Heater for Your Insulated Shop in 2026
The best garage heaters for insulated shops in 2026 come down to three decisions. Insulate first, because a shop with R-13 walls and an R-30 ceiling lets a much smaller heater do the job. Size at 30 BTU per square foot plus 10% for every foot of ceiling above 8 ft. Then pick delivery: the Mr. Heater F260550 for a ceiling-mounted gas shop, the Dr. Infrared DR-975 or Comfort Zone CZ230ERBK if you have a 240V circuit, and the GASLAND FH12FB or Mr. Heater F271390 if propane portability matters more than a gas line.
Whichever you choose, add a thermostat, a carbon monoxide detector and a plan for condensation. Those three details do more for day-to-day comfort than another 20,000 BTU ever will.
