There is a reason nobody in a working shop will tolerate a floor heater kicked over in the middle of a winter project. Ceiling mounting keeps the whole floor plan free for the vehicle, the lift, the bench and the lumber rack, and it is the only way to push warm air down across the whole bay instead of heating the three feet nearest the outlet. That is why ceiling mounted garage heaters are the default choice for a workshop rather than an alternative.
We compared ten of them for this guide, from hardwired 240V fan-forced units to radiant quartz panels and two gas ceiling heaters. Our aim was simple: find the unit that holds temperature in a real bay, not the one with the biggest number on the box. The short answer is that most buyers should start with the Dr. Infrared DR-975, but the honest answer depends on whether you have a 240V circuit, a gas line, or neither.
If you are still mapping out the bay, start with our broader garage heater roundup, which covers portable and infrared options too, and our pegboard system guide for getting the walls right before you worry about heat.
Table of Contents
Top 3 Best Ceiling Mounted Garage Heaters for Workshops (September 2026)
Dr. Infrared DR-975 7500W
- 7500W hardwired 240V output
- Remote thermostat 50-85F
- Ceiling or wall mount
- UL/CUL listed
Comfort Zone CZ220BK 5000W
- 5000W hardwired 240V output
- Three fan speeds
- Dual knob thermostat
- ETL compliant
Comfort Zone CZ230ERBK 7500W
- 7500W hardwired 240V output
- Digital thermostat with remote
- 12-hour timer
- 1250 sq ft coverage
All 10 Ceiling Mounted Garage Heaters Compared Side by Side
The table below lists every ceiling mounted garage heater in this guide with its power source and the job it is best suited to. Read across the fuel and voltage columns first, because that single choice eliminates half the list before you look at output numbers.
| Product | Specifications | Action |
|---|---|---|
| Dr. Infrared DR-975 7500W |
|
Check Latest Price |
| Comfort Zone CZ220BK 5000W |
|
Check Latest Price |
| Comfort Zone CZ230ERBK 7500W |
|
Check Latest Price |
 Mr. Heater 50000 BTU Gas |
|
Check Latest Price |
 Dr. Infrared DR218-1500W |
|
Check Latest Price |
 Shinic 2-Pack Radiant 1500W |
|
Check Latest Price |
 TEMPWARE 5000W ECO |
|
Check Latest Price |
 InoKraft 7500W |
|
Check Latest Price |
 Heatstar MH25NG Radiant |
|
Check Latest Price |
 ROVSUN 5000W Wi-Fi |
|
Check Latest Price |
1. Dr. Infrared DR-975 7500W – Best Overhead Heater Overall
- 7500W covers up to 800 sq ft
- Remote controlled thermostat 50-85F
- Five adjustable louvers
- UL/CUL listed for safety
- Mounts on the ceiling or the wall
- Hardwired with no power cord included
- Needs 8 AWG copper
- Single fan speed
The DR-975 is the ceiling unit most workshop owners should buy, and the reason is coverage rather than peak output. At 7500 watts on a hardwired 240V circuit it is rated for roughly 800 square feet, which covers a one-car bay or a well-insulated two-car shop with room to spare. It is also the only unit in this group that mounts flat against a wall when the ceiling joists are in the way.
Owners consistently point to the remote thermostat and the five adjustable louvers as the two features that make it usable day to day. You set a setpoint anywhere from 50 to 85 degrees and aim the louvers down toward the bench instead of blasting the floor. That tilt matters more than most buyers expect because a fixed straight-down pattern leaves the corners cold.
Installation is the one real hurdle. The unit draws 31.25 amps and the manual calls for 8 AWG copper on a dedicated 240V circuit, so this is electrician territory in most homes. It weighs 26 pounds, which is manageable with a helper, and the fully enclosed motor is the part reviewers credit for long service life. The one-year limited parts warranty is thin, but the motor is the piece that usually fails on these heaters, and this one is built properly.
Why we picked it for a workshop bay
It hits the 10 watts per square foot rule for an insulated 576 square foot bay without forcing a 30A circuit upgrade on an owner who does not have one. Add 23.5 amps of headroom against a 31.25 amp draw and you have a unit that can run continuously on a cold morning without cycling.
The remote matters more than it sounds. Nobody wants to climb a ladder to a thermostat on a wall at 6am, and a ceiling unit with no remote means the controls are wherever you mounted it.
Where it falls short
A single fan speed is a real limitation if you want the blower running without the heat, and the 26-pound weight is heavy for a solo ceiling install on finished drywall. If your bay is uninsulated or north-facing, 7500 watts will feel undersized, and you should size up to 10,000 watts or add a second unit instead.
Hardwiring also rules it out for renters and for anyone without an existing 240V subpanel, which is the single biggest reason people end up with a smaller unit than they wanted.

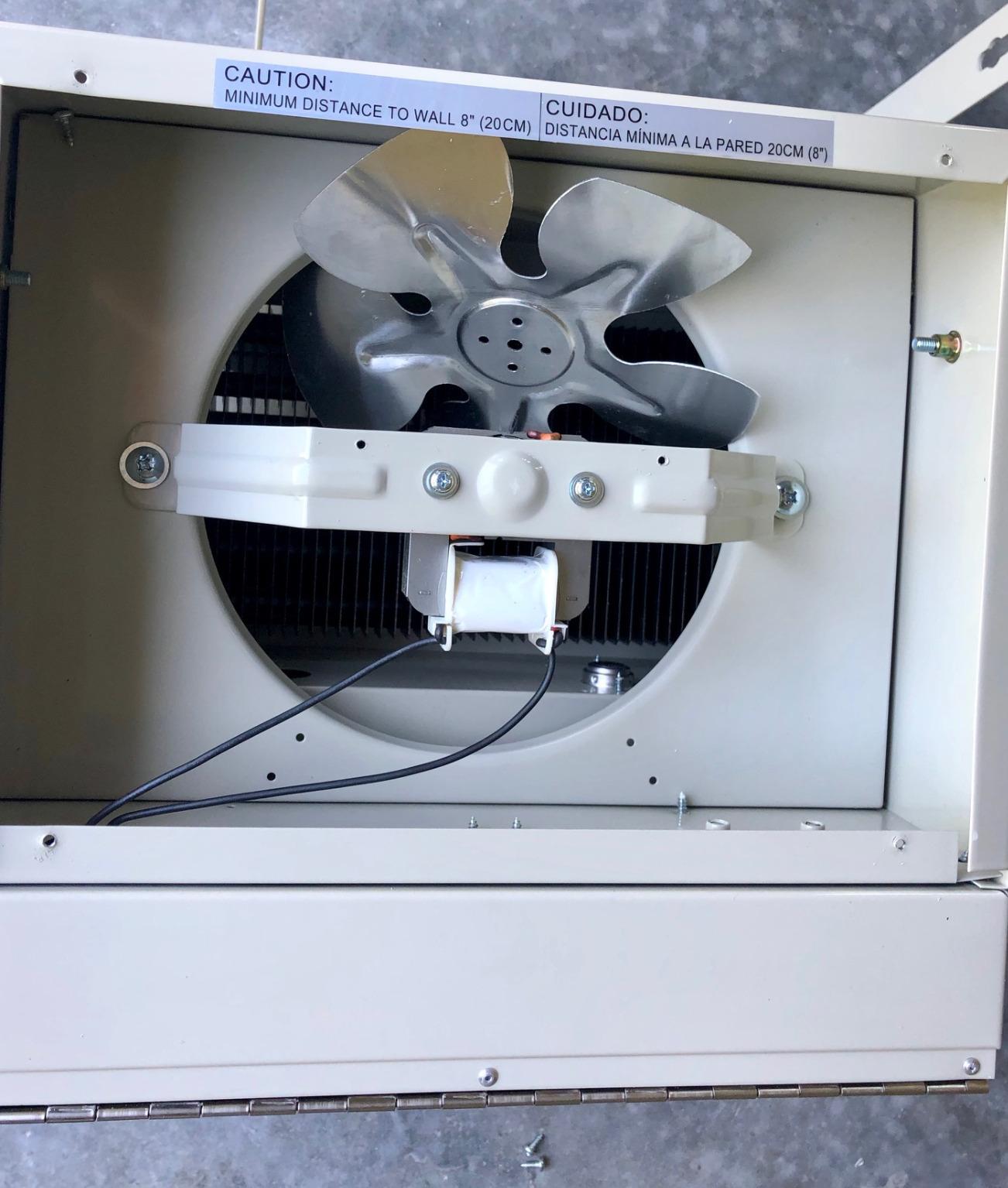

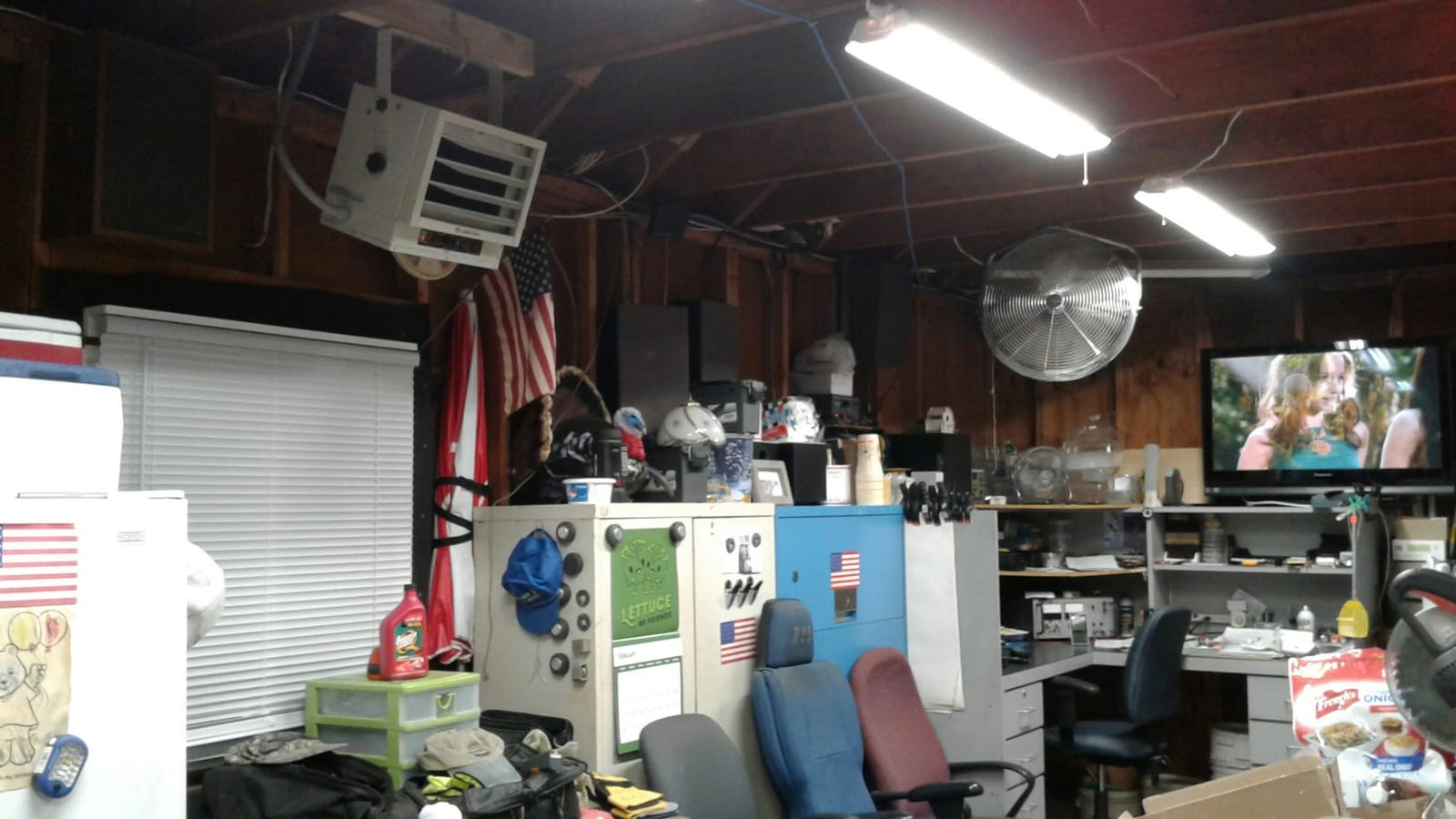

2. Comfort Zone CZ220BK 5000W – Best Value Overhead Unit
- Covers up to 1000 sq ft
- Three fan speed settings
- Dual knob thermostat
- Overheat protection with auto shut-off
- Cool touch exterior
- Hardwired installation required
- Manual knob thermostat only
- No remote control
This is the value pick, and the value is in the physical unit rather than the feature list. The CZ220BK is heavy-gauge steel, ceiling mount only, and rated to 17065 BTU of output across up to 1000 square feet. Reviewers describe it as the heater that still works after five winters in a poorly insulated bay, which is exactly the environment a workshop runs in.
Unlike the digital units on this list, the control is a dual knob thermostat reaching up to 95 degrees, and there are three fan speeds. You give up remote control and programmability, and in exchange you get a simpler box with fewer electronics to fail. Owners working long weekends in cold bays tend to prefer that trade.
At 20.9 amps and 20.4 pounds it is the least demanding of the hardwired units to install, and it ships with a mounting bracket and manual only. Overheat protection with automatic shut-off is built in, and the housing is rated cool to the touch, which matters when the unit hangs over a bench where people actually work. The 45 to 95 degree thermostat range is wider than most of the competition.
Where it beats the bigger units
In a single-stall bay or a single-car garage, 5000 watts is genuinely enough when the building has any insulation at all, and the running cost is a third lower than a 7500W unit. It is also the lightest of the hardwired ceiling units here at 20.4 pounds, so a two-person install is realistic.
ETL compliance and a one-year warranty against manufacturer defects are both documented, which is more than several competing listings offer.
Where it falls short
The manual thermostat is the compromise. There is no remote, no timer and no display, so temperature control is whatever setpoint you dial in and forget. If you want to warm the bay before a Saturday session, you are walking over to the wall.
Ceiling mount only means you cannot reposition it to wall height in a bay with low joists, and 5000 watts will not hold temperature in a drafty two-car garage no matter how good the thermostat is.
3. Comfort Zone CZ230ERBK 7500W – Best Ceiling Heater With a Digital Thermostat
- Covers up to 1250 sq ft
- Digital thermostat with remote
- 12-hour timer plus three fan speeds
- Overheat protection with auto shut-off
- Adjustable louvers and mount angle
- Hardwired installation required
- Sensor connector can need a swap
- Lag bolt may be too short for drywall
This is the most capable electric unit in the guide. At 25600 BTU it is rated for 1250 square feet, which is close to what a two-car bay needs, and it is the only 7500 watt ceiling model here with a proper digital display, a remote and a 12-hour timer. Set a setpoint from 45 to 95 degrees and the fan delay keeps the blower running after the element cuts to spread the heat.
Owners rate the heating performance highly and the paperwork as complete, but a recurring note appears in reviews: some units ship with a temperature sensor connector that reads high until it is swapped. It is a small part and a five-minute fix if you are comfortable opening the housing, but it is worth knowing before you rely on the display for a freeze.
At 31.3 amps it needs a proper 30-amp 240V branch circuit, and the included lag bolt is reported as too short for a drywall ceiling. Bring your own fasteners and check the joist depth before the electrician starts. The unit weighs 23.5 pounds and ships with a bracket, manual and remote.
Why workshop owners pick it
The 12-hour timer is the feature that changes behaviour. Schedule the bay to warm from 5am on a workday and stop thinking about it, which matters far more in a full-time workshop than a weekend garage.
Coverage of 1250 square feet at 7500 watts is roughly 6 watts per square foot, which is below the 10 watt rule for an insulated space, so this unit only earns its rating in a bay that is already tight. In a 24 by 24 workshop it will be comfortable; in a drafty one it will run continuously.
Where it falls short
Customer service is criticized by several owners, and the sensor connector issue means you may be troubleshooting a reading problem in your first week. Hardwiring at 31.3 amps is the most demanding install on the electric side of this list alongside the DR-975.
Some reviews also flag the supplied lag bolt for drywall installs, so plan on purchasing your own hardware rather than assuming what is in the box will hold the unit.
4. Mr. Heater F260550 50000 BTU – Best Propane and Gas Ceiling Heater
Mr. Heater 50,000 BTU Forced-Air Unit Heater (Propane or Natural Gas)
- Heats up to 1667 sq ft
- NG to LP conversion kit included
- Works with 24V or Wi-Fi thermostats
- High temperature shut-off plus flame sensor
- Reported five-plus year reliability
- Needs a gas line and vent installation
- Vent kit sold separately
- Noisy fan on some units
- Minimum 10 ft ceiling height
If you have a gas line or plan to run one, this is the only unit in the guide that heats a whole three-car bay on a fuel bill that stays predictable. Fifty thousand BTU covers 1667 square feet, roughly three times what a 7500 watt electric unit handles, and the conversion kit lets you switch between natural gas and propane in the same housing.
It ships with two angle brackets for ceiling mount and works with any standard 24-volt or Wi-Fi thermostat, so you are not locked into the manufacturer’s controls. The safety package includes a high temperature shut-off switch and a gas safety flame sensor, which are the two protections that matter most on a combustion appliance hanging over a work area.
Owners report five-plus years of service and describe it as cheap to operate once installed, and that framing comes up again and again in workshop discussions. The catch is the install. This needs a licensed gas fitter, vent piping through the roof, and a vent kit that costs close to what the heater does. The listed minimum is a 10 foot ceiling with 8 feet of clearance below the base of the heater, so many residential 9 foot ceilings simply do not qualify.
When a gas unit wins outright
Anything over about 1200 square feet, a drafty or uninsulated structure, or a bay you expect to heat every working day through winter. Electric resistance gets expensive fast at that scale, and a gas unit reaches temperature much faster after opening the door on a cold morning.
The thermostat compatibility is a genuine advantage. Owners running a smart thermostat or a timer from another brand can drive it without buying anything extra.
Where it falls short
Ventilation, clearance and a carbon monoxide detector are non-negotiable with this unit, and the install cost will exceed the heater. Several owners report a noisy or wobbling fan, and the included thermostat wire is only 10 feet, so plan the thermostat location before the fitter closes up the wall.
If your ceiling is under 10 feet, keep looking. The mounting clearance rules alone will rule this unit out of a standard two-car garage without modification.

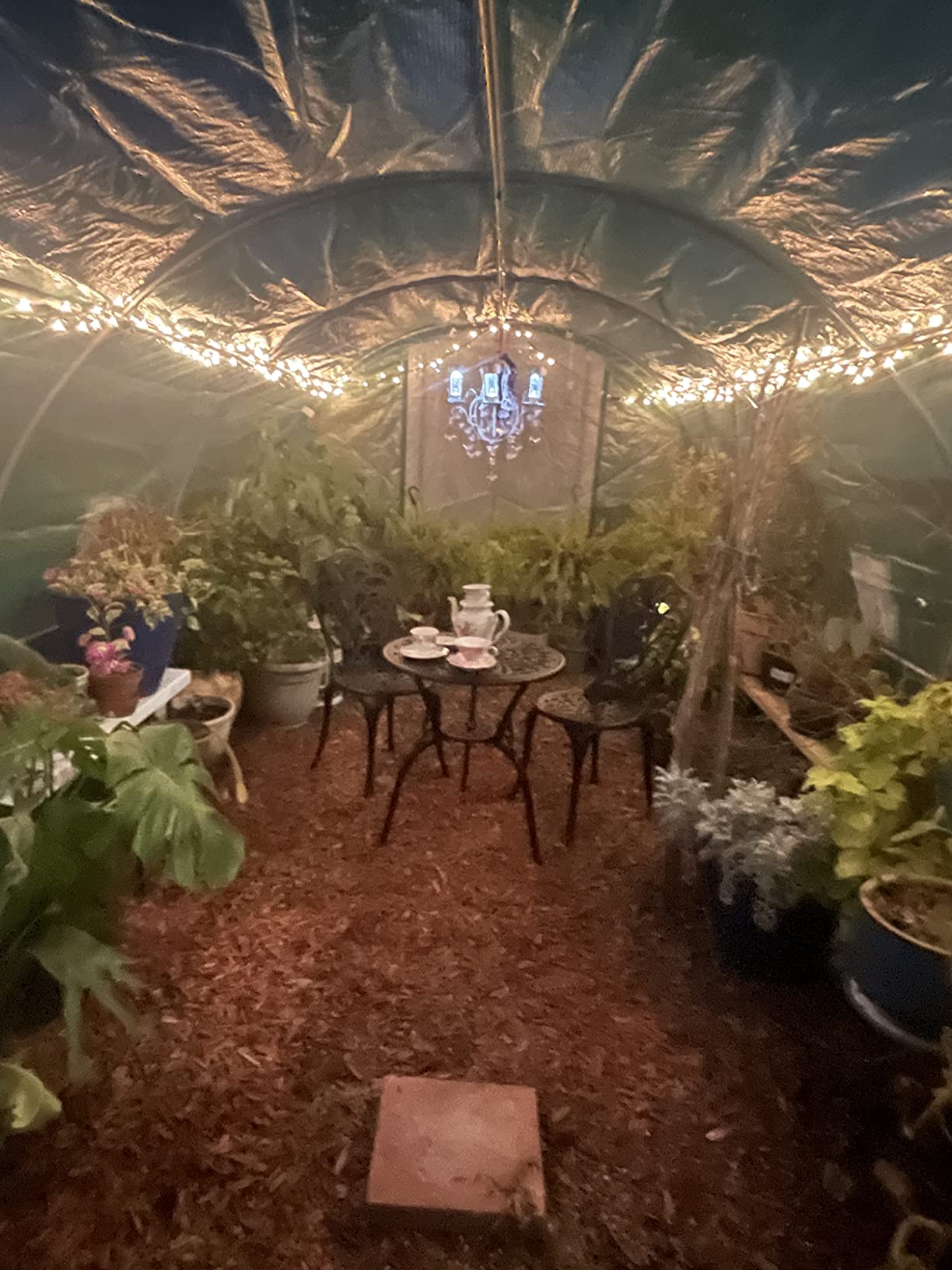

5. Dr. Infrared DR218-1500W – Best Compact Spot Heat Add-On
DR. INFRARED HEATER DR218-1500W Greenhouse Garage Workshop Infrared Heater, 1500-watt
- Plugs into a standard 120V outlet
- Only 11.5 pounds
- IPX4 water splash protection
- Overheat protection
- Low maintenance
- Covers only 150 sq ft
- Single heat setting
- Listed as floor mount rather than ceiling
Let’s be straight about where this one fits. The DR218 is a 1500 watt infrared cabinet heater rated for 150 square feet, and it is listed as floor mount rather than ceiling mount. It is not a substitute for a ceiling mounted garage heater, and buying it as one is the most common sizing mistake we see in this category.
What it is genuinely good for is a small insulated corner: a tool crib, a paint booth, a greenhouse, or a seat of the bench where you sit to sand and finish. At 11.5 pounds and 12.5 amps it moves between outlets with one hand, the IPX4 rating handles splashes, and overheat protection shuts it down if you knock the grille or drape something over it.
It runs from 32 to 104 degrees on a single heat setting, which tells you the design intent was a small enclosed space rather than a bay. Owners like that it needs no install at all and asks nothing of the electrical panel, and that it has been maintenance free for years of intermittent use.
Where it genuinely helps
Adding it near the workbench while the ceiling unit handles the bay. Two heat sources let you run the small one for personal comfort and avoid firing the whole 7500 watt circuit every time you sit down to do detail work.
It is also the right answer for a 120V-only space such as a shed or a greenhouse, where pulling a 240V circuit is not practical.
Where it falls short
At 150 square feet of rated coverage there is no version of this unit that heats a workshop bay. Radiant output falls off fast with distance, so a unit parked across the bay from your bench will not warm you.
There is a single heat setting, no timer and no remote, so it is entirely dependent on you remembering to switch it off.

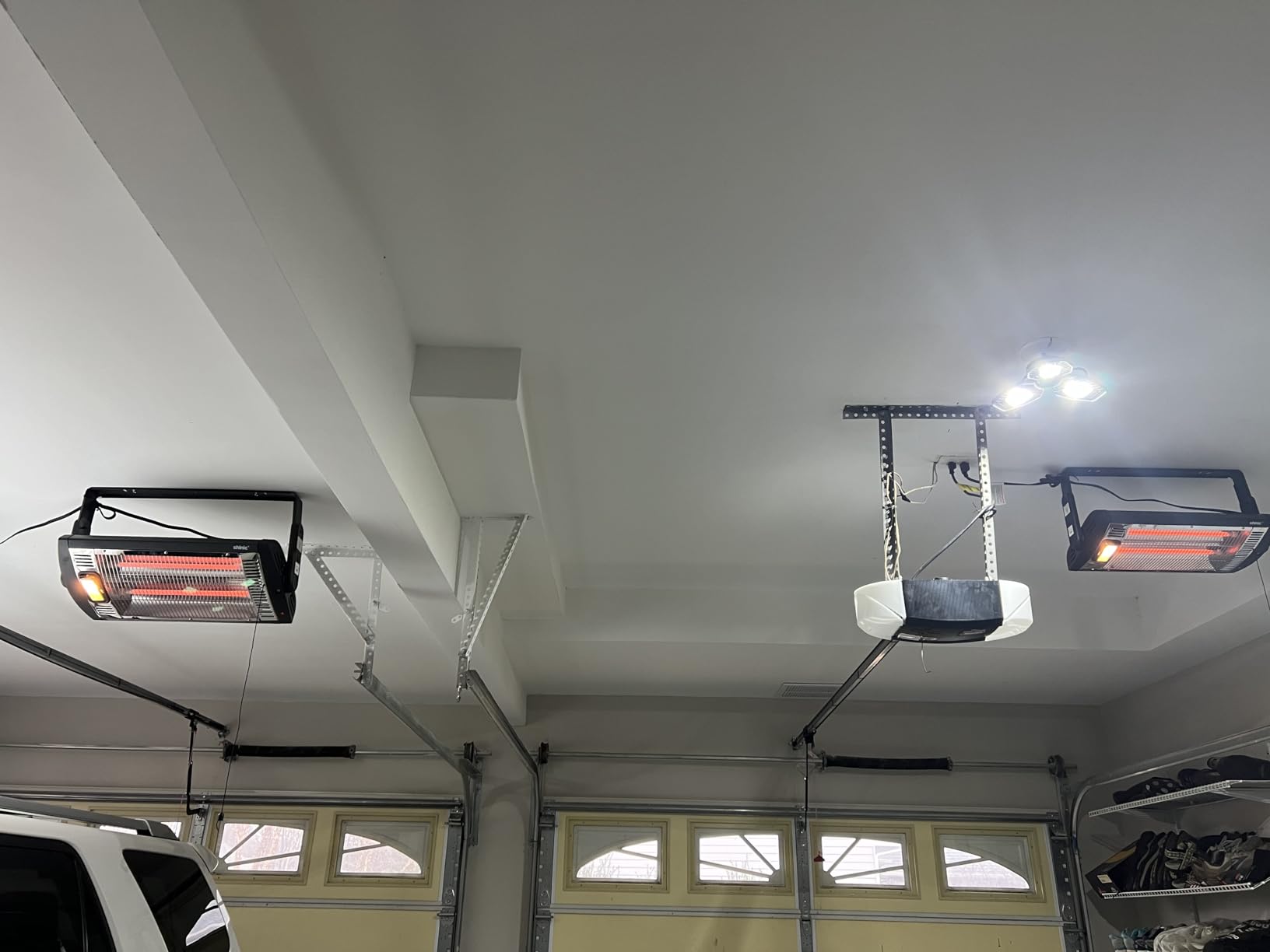

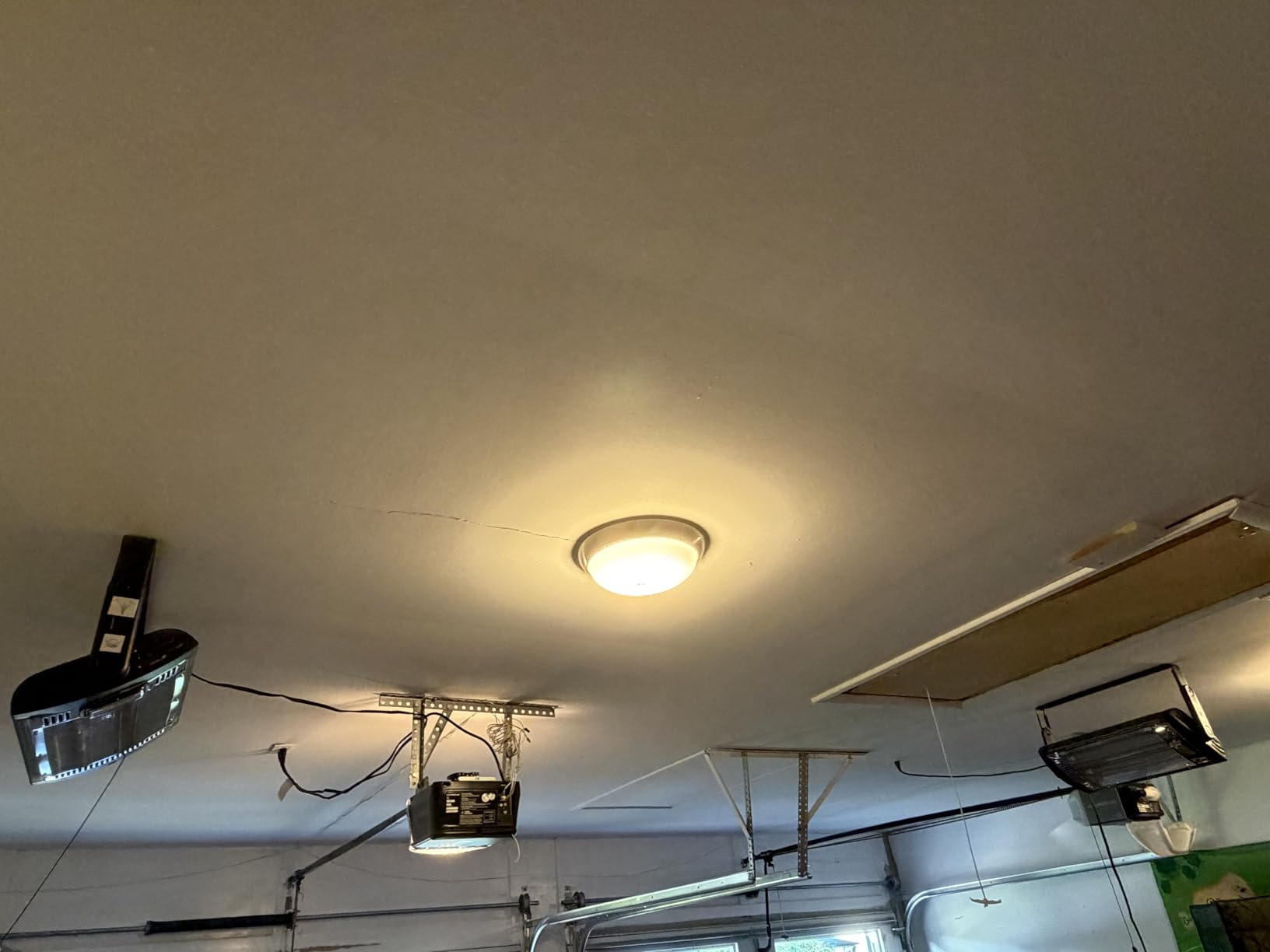

6. Shinic 2-Pack Radiant 1500W – Best Budget 120V Ceiling Heater
Shinic 2-Pack 120V Electric Garage Heater,1500W/750W Ceiling Mounted Heater
- Two units in one pack
- Plugs into a standard 120V outlet
- Built-in halogen work light
- Overheat auto-off and ETL listed
- Five mode settings
- Radiant heat only warms what is in front of it
- Many owners report it is weak in cold bays
- Needs a 20A circuit per unit
This pack gets you two ceiling-mounted radiant heaters at 1500 watts each that plug into ordinary 120V outlets. That means no electrician, no new circuit and no permit, which makes it the fastest path to a warm bench in a bay you have not wired yet. Each unit carries two quartz tubes and rotates through 90 degrees so you can aim the output downward.
The halogen work light is the sleeper feature. Owners like having bench lighting from the same fixture that heats it, and the metal housing, overheat auto-off and three-prong grounded plug cover the safety basics. The listing is ETL listed, which matters more than it sounds in a dusty shop.
Five mode settings let you run 750 watts, 1500 watts, either of those with the light, or off. The catch is physics: quartz radiant heaters warm the people and objects directly in their path, not the air of the bay. Owners in cold climates consistently report that it is fine for the bench and disappointing for the room.
Where it makes sense
Unheated or barely heated workshops where you spend twenty minutes at the bench, not eight hours. Mount one over the work surface, one over a repair stand, and turn them on for the hour you need them. The pull cord switch means no wiring and no app to set up.
For a hobbyist without a 240V circuit, this covers a two-car garage on a 120V budget better than anything else on the list.
Where it falls short
Each unit needs its own 20-amp circuit, so you cannot expect to run both off a single general purpose outlet. The pull cord is also awkward to reach once the unit is overhead, and reported increases in the electricity bill are common because people leave radiant heat running.
It will not raise the air temperature of a bay. If you need the whole space usable when you walk in from the cold, look at a fan-forced unit instead.

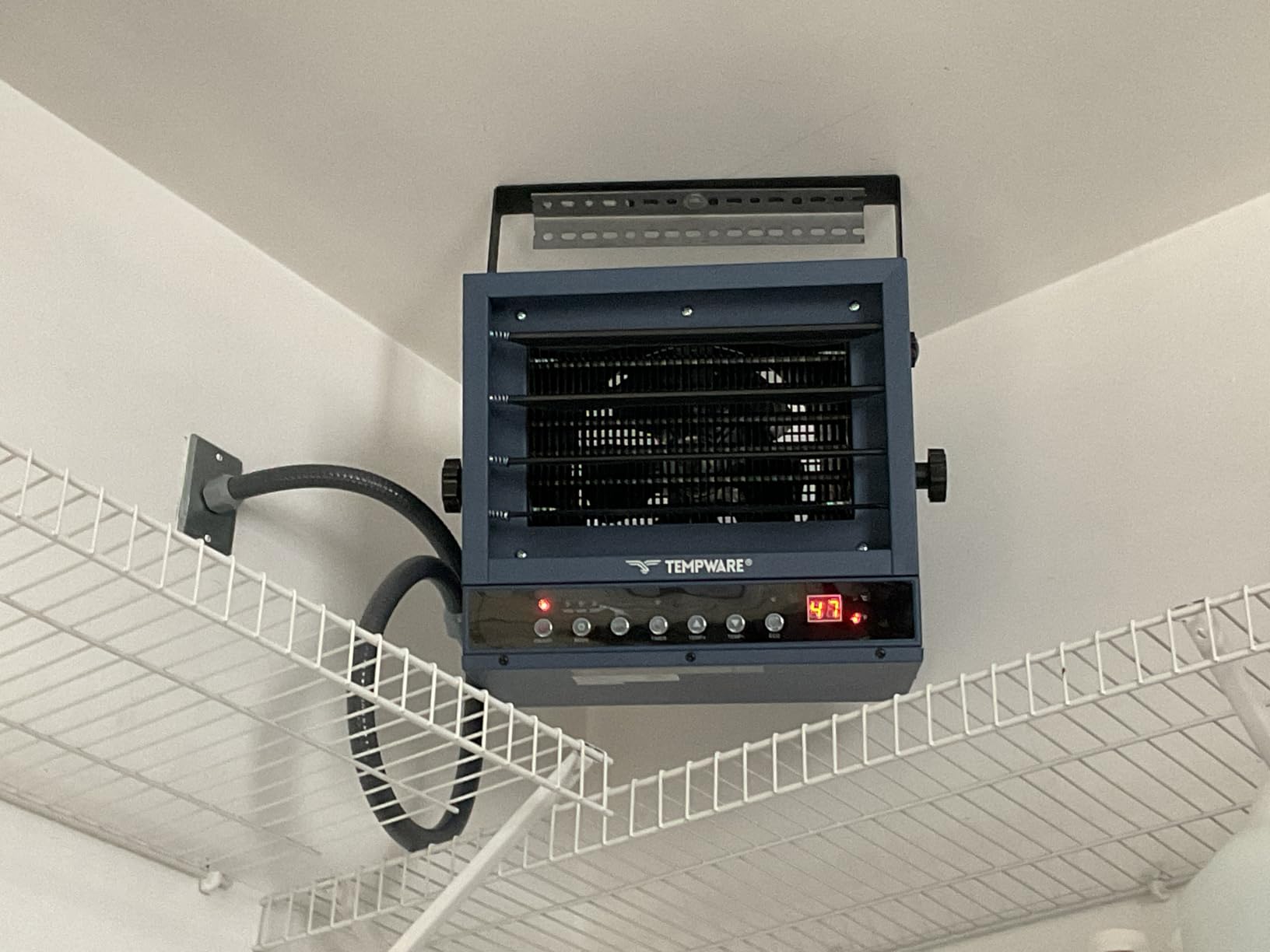

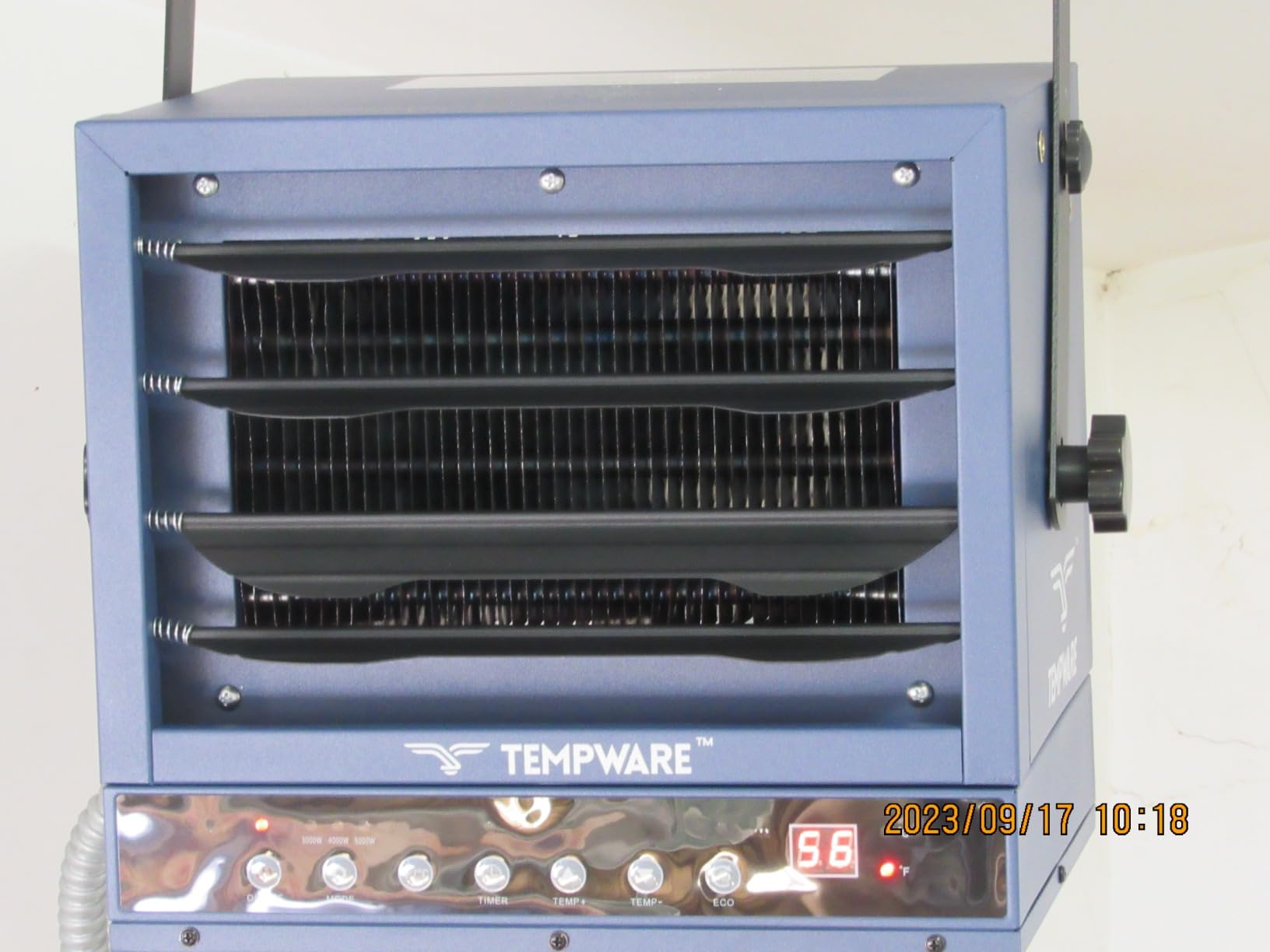

7. TEMPWARE 5000W – Best Ceiling Heater With ECO Mode
- Switches between 3000W 4000W and 5000W
- ECO mode reads ambient temperature
- 12-hour auto-off timer
- Adjustable louvers and mount angle
- ETL certified with overheat protection
- Hardwired so it needs an electrician
- Specs list mounting type as floor mount
- Smaller rated coverage of 592 sq ft
The TEMPWARE 5000W is the one to look at if your electric bill is the reason you keep hesitating. Its ECO mode uses a built-in temperature sensor to adjust the working state or shut the unit down as the bay reaches setpoint, and you can layer a 1 to 12 hour auto-off timer on top of that. Across a working week that adds up in a way a fixed-output unit never will.
Output steps down through 3000, 4000 and 5000 watts, which is more granular control than most 240V ceiling heaters offer. Max output is 17060 BTU, rated for 592 square feet, and the setpoint range runs from 45 to 95 degrees. Adjustable louvers and a variable mount angle let you aim the pattern at the bench rather than the floor.
It is ETL certified, has overheat protection, and is built from heavy-duty steel. The included hardware is a bracket and a remote; the power cord is not included, and the manufacturer is explicit that an electrician should land it on a grounded circuit sized to local code. Treat that as a fixed cost, not an optional extra.
Why it suits a part-time shop
Three power levels plus an ambient-sensing mode mean the unit matches what the bay actually needs rather than running full tilt until a knob turns. For a shop that is warm four days a week and freezing on Saturday mornings, that flexibility is worth more than raw wattage.
At 20.83 amps it is also one of the lighter electrical loads in this guide, which keeps the circuit work simple if your subpanel is tight.
Where it falls short
The specification sheet lists the mounting type as floor mount even though the product is sold and described as a ceiling mount shop heater, so confirm the bracket and the manual before you commit. Coverage of 592 square feet is also the smallest of the 240V ceiling units here.
At 281 reviews the long-term reliability record is short compared with the units that have thousands of owner reports behind them.

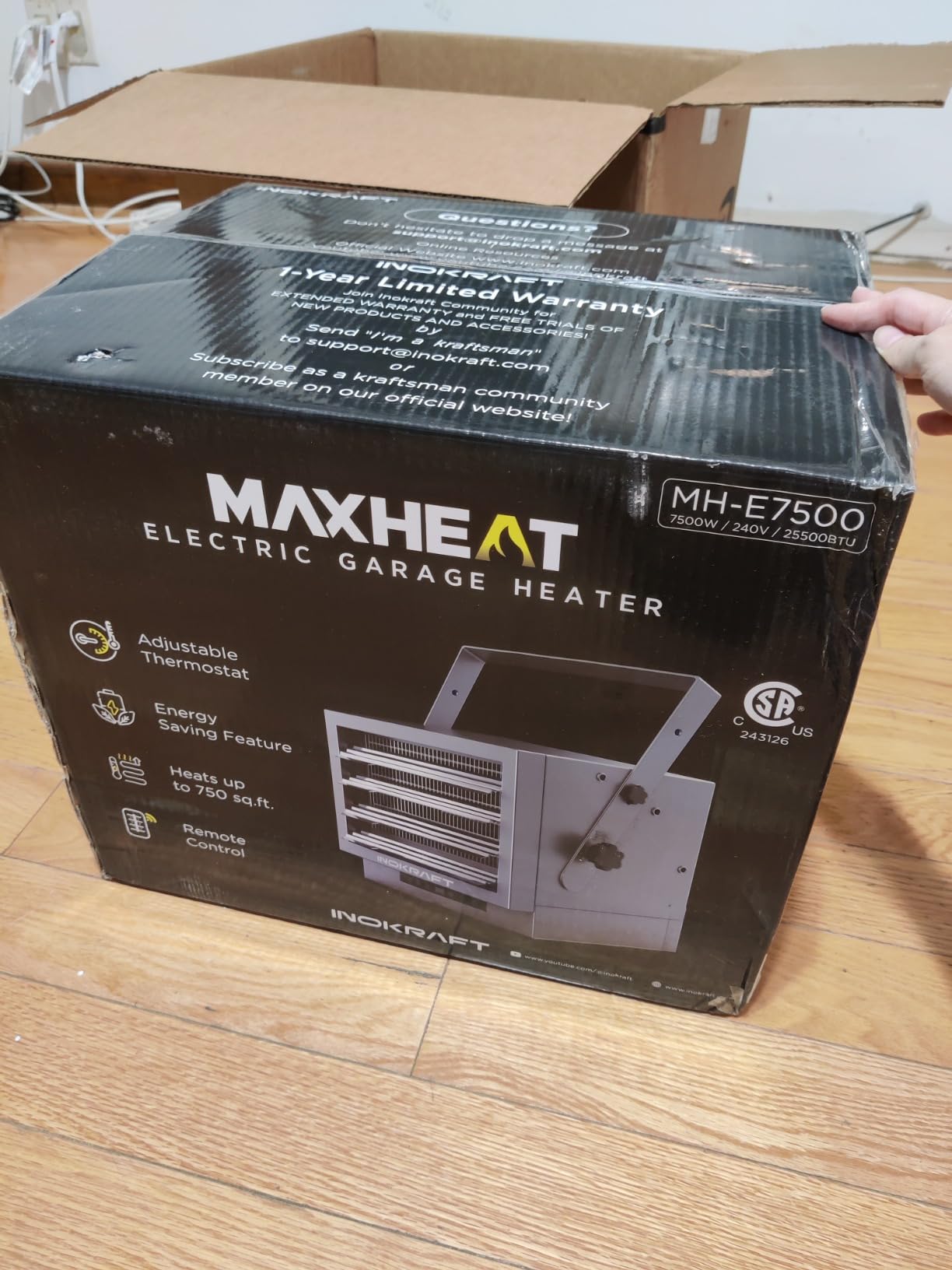

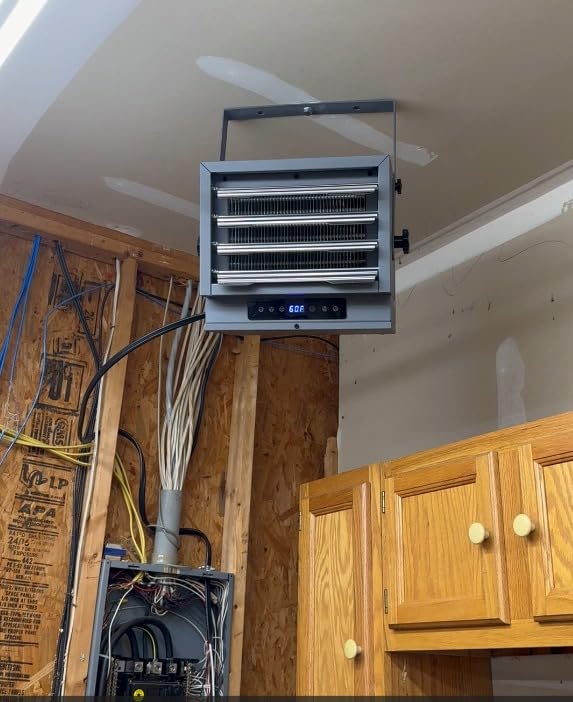

8. InoKraft 7500W – Ceiling Heater With a 24-Hour Timer and a Published Noise Figure
InoKraft 7500W Electric Garage Heater, 240V Ceiling-Mount, Hardwired
- Published 65 dB operating figure
- Covers up to 750 sq ft
- Timer runs from 1 to 24 hours
- Five angle adjustments plus flexible louvers
- Fan delay function and overheat protection
- Hardwired installation required
- Only two fan speed settings
- Newer brand with a shorter review history
Workshop noise is a real complaint, and this is the only unit in the guide that publishes a figure for it. The InoKraft 7500W is rated at 65 dB, and owners in shared or small shops tend to notice the difference when a podcast or a radio playing behind the heater would otherwise be drowned out. The fan delay also keeps the blower running briefly after the elements cut, which spreads heat more evenly on the way down.
Controls are where this unit competes hard. The digital thermostat runs from 40 to 99 degrees, the timer runs from 1 to 24 hours, and there are four operating modes covering high, low, ECO and fan only. That 24-hour timer is longer than anything else on the list and pairs well with a five-day work week.
It covers up to 750 square feet at 7500 watts, mounts on a ceiling or a wall, and offers five angle adjustments at install time plus flexible louvers. It draws 31.25 amps, so it lands on the same 30-amp 240V circuit as the other 7500 watt units, and installation again means an electrician.
Where it stands out
The combination of a published noise rating, a 24-hour timer and ECO mode makes it the most controllable 240V unit here. For a workshop where someone is listening to music or a podcast while sanding, that is a genuine quality of life difference.
Four operating modes including fan only let you move air in the bay in summer without adding heat, which extends the life of the install.
Where it falls short
Only two fan speeds is fewer than the Comfort Zone units offer, and the 201-review history is thin next to the thousands of reports on the leaders, so long-term durability is less well documented. Hardwiring at 31.25 amps is the same constraint as the other 7500 watt choices.
The listing describes wall and ceiling mounting, so confirm the bracket includes hanging hardware if you are mounting overhead rather than on a stud wall.
9. Heatstar MH25NG – Best Radiant Natural Gas Overhead Heater
Heatstar By Enerco F125444 Radiant Overhead Garage Heater MH25NG Natural Gas
- Radiant output warms people and surfaces directly
- Model has a 20-plus year track record
- Quiet operation
- Mounts overhead or on a wall
- Replacement parts still available
- Requires a natural gas line and venting
- Vent kit sold separately
- Included thermostat reported as inaccurate
- Thermostat wire is only about 10 ft
The MH25NG takes a different approach from the forced-air units. It is a radiant infrared overhead heater running on natural gas, so it warms the person and the work surface in its path rather than the air in the bay. In a woodworking shop where you stand still at a bench, that is often exactly what you want, and owners describe it as quiet and efficient at holding a workable temperature.
This is a long-standing model with owner reports stretching back more than twenty years, and replacement parts are still easy to source. The body is 12 by 29.75 by 9 inches, which makes it a low-profile overhead unit that clears easily in a bay where ductwork or a lift is already overhead.
It requires a 4 inch B-vent through the roof and a natural gas line, both of which mean a licensed gas fitter, and a carbon monoxide detector in the space. A wall vent pack is included but the roof venting is sold separately, so the installed cost will exceed the unit price. Thermodynamic reality means radiant heat is felt most strongly within a few feet of the heater.
Who this suits
Woodworkers, welders and anyone who works in one spot for hours at a fixed bench. Radiant overhead units put heat exactly where the work happens and leave the rest of the bay cold, which is efficient and perfectly acceptable if you only occupy part of the space.
If you already have a gas line and natural gas is cheaper than electricity in your area, this is a low operating cost way to heat the bench.
Where it falls short
It is a natural gas unit only, with no propane path, so it does not suit an off-grid workshop. The included thermostat has been reported as inaccurate, and the roughly 10 foot thermostat wire limits where you can mount the control.
One owner reports a carbon monoxide issue traced to installation and venting rather than the appliance itself, which is a reminder that a combustion heater over a workbench has no tolerance for a rushed flue. The review count is also the smallest in this guide, so the long history is the main evidence in its favour.

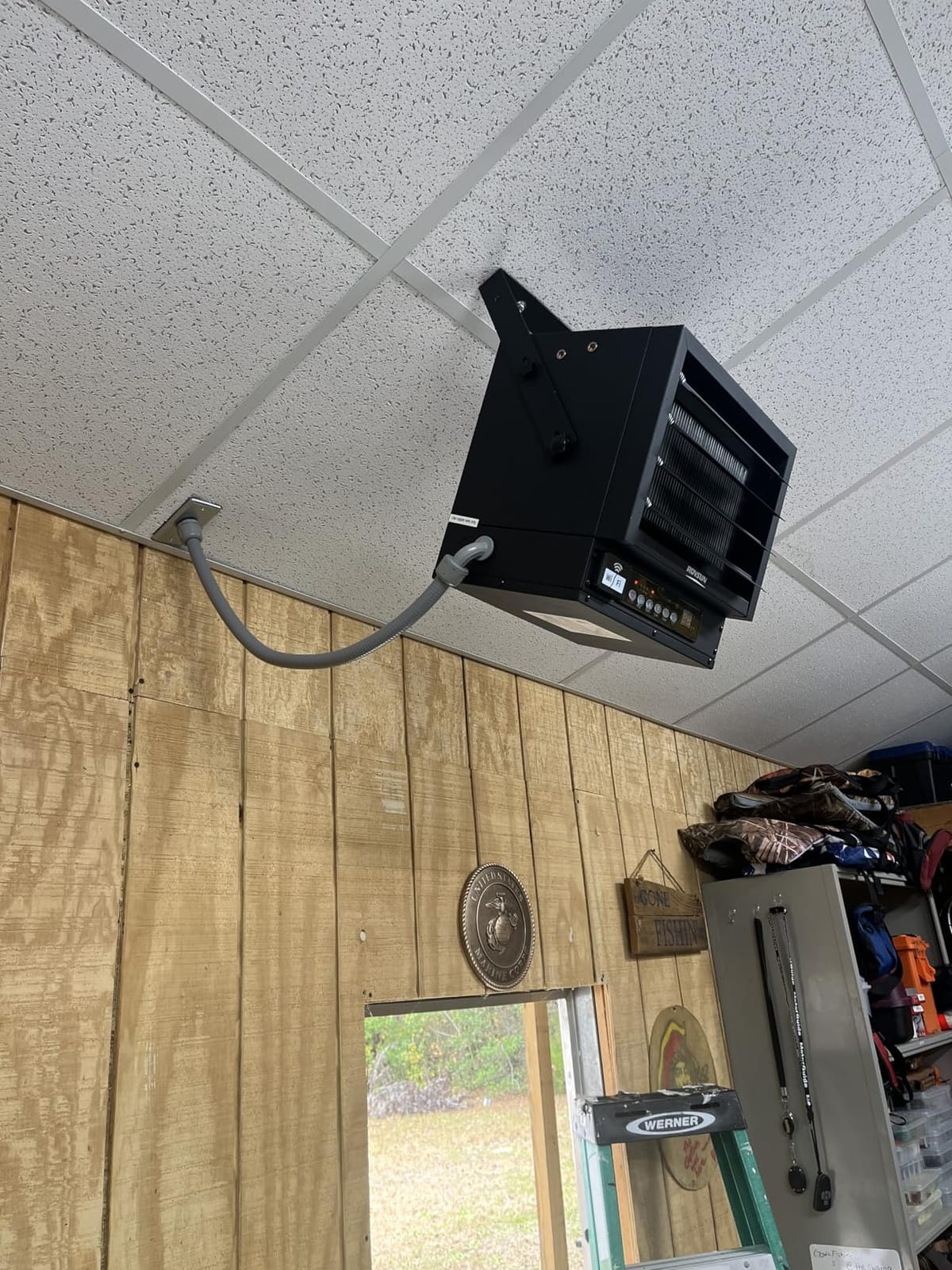

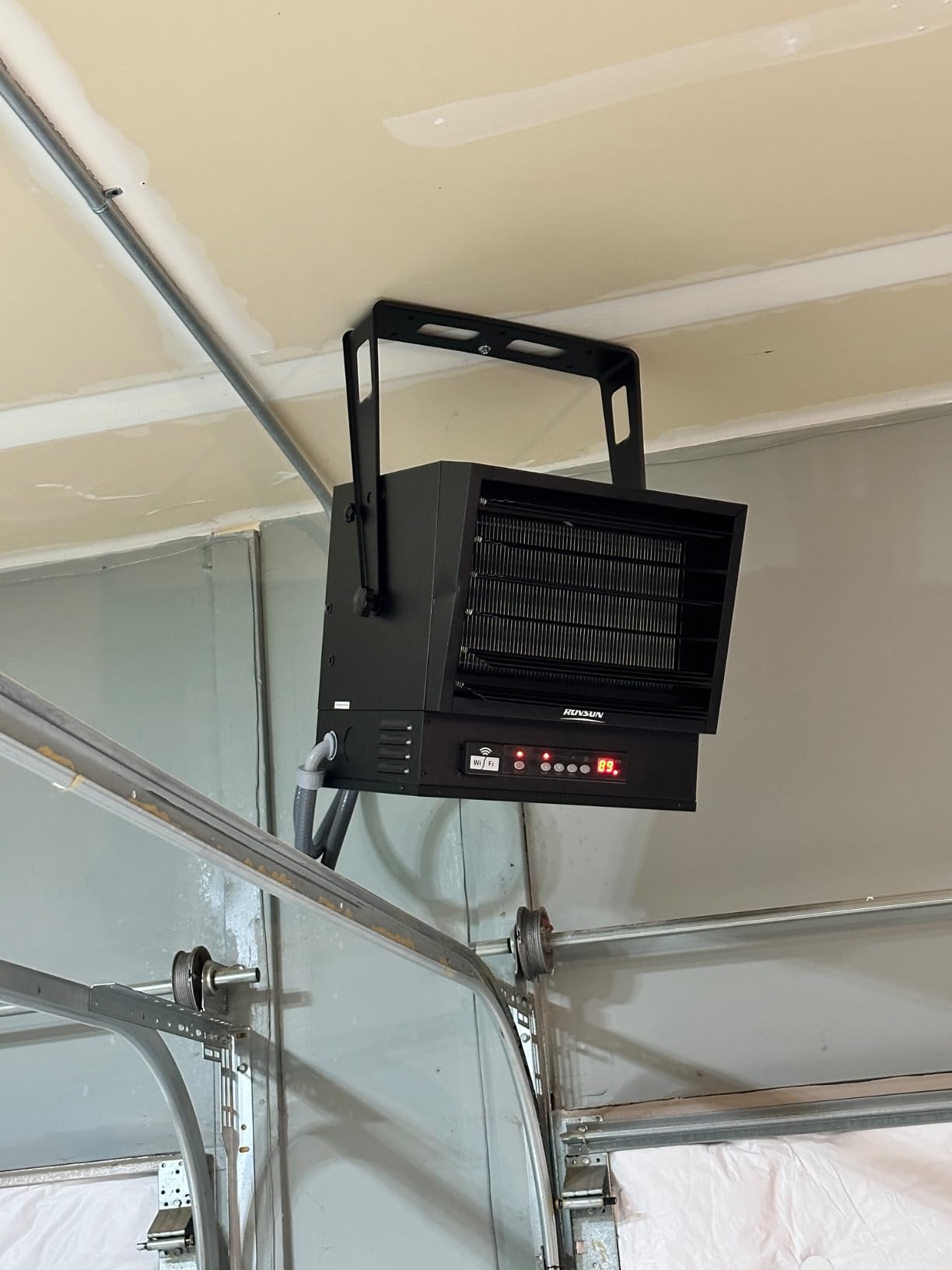

10. ROVSUN 5000W – Best Ceiling Heater With App Control
- App control through a smart home platform
- Remote and control panel included
- Adjustable 0 20 and 40 degree outlets
- ETL certified with overheat protection
- Sturdy steel frame
- Wi-Fi and app setup reported as difficult
- Internal thermostat may read high
- Cosmetic damage reported on arrival
- Hardwired 240V installation required
The ROVSUN is the pick for a workshop that is already a smart building. Alongside the control panel and the remote, the unit offers app control so you can start warming the bay from your phone before you drive out to it, set the 12-hour timer remotely, and track energy use across a week. It delivers 17060 BTU from 5000 watts and is rated for 1000 square feet.
The adjustable outlets are set to 0, 20 or 40 degrees, which gives you more aiming control than the fixed louvers on most competing units. The steel frame, ETL certification and built-in overheat protection cover the safety basics for a unit that will hang over a work area in a dusty space.
The catch is setup. Multiple owners report the app and Wi-Fi pairing as the frustrating part of the install, and several mention the internal thermostat reading up to 10 degrees higher than the actual bay temperature, so treat the app display as a relative indicator rather than a measurement. One owner also reported cosmetic damage on arrival, so inspect the unit before signing for it.
Where app control earns its keep
A full-time shop that closes up at 5pm and opens at 7am can preheat on a schedule without anyone walking out to the wall, and pairing it with a smart plug or sensor in a larger system is straightforward once the initial pairing works.
The 0, 20 and 40 degree outlet settings let you heat the bench zone in the morning and re-aim toward the vehicle bay later, which is useful in a two-zone space.
Where it falls short
At 103 reviews this is the thinnest evidence base in the guide, and several owners report a difficult return process if the appliance is faulty. The thermostat accuracy issue is worth compensating for with a cheap wall thermometer if you care about a precise setpoint.
It is hardwired 240V with no power cord, and the manufacturer specifies a 12 AWG connection made by an electrician, so none of the smart features remove the installation step.
Ceiling Mounted Garage Heater Buying Guide
Size the output to the bay, then check the insulation
The rule of thumb for a workshop is 10 watts per square foot for an insulated bay and 20 watts per square foot for a drafty or uninsulated one. A 24 by 24 workshop is 576 square feet, so an insulated bay wants roughly 5,750 watts and an uninsulated one wants about 11,500. If you are on propane, translate at 3,412 BTU per kilowatt, which puts the same 24 by 24 bay near 20,000 BTU insulated and 40,000 BTU uninsulated.
Insulating the walls and ceiling before you buy is almost always the better spend. Every forum thread on workshop heat comes back to the same lesson: the most common regret is buying a small heater for a drafty bay and then fighting it all winter.
Work out the 240V circuit before you choose the heater
Any unit above about 3000 watts needs a dedicated 240V circuit, and a 7500 watt model draws 31 amps. A 10 AWG conductor on a 30-amp double-pole breaker covers most of these units, but confirm against the manual. If your garage already has a NEMA 14-50 outlet for a welder or an EV charger, a plug-in model is the path that avoids an electrician entirely.
Owners consistently report that the circuit, not the heater, is the expensive part of a ceiling mounted garage heater install. Budget for that before you pick a model, and it changes which units on this list you can realistically consider.
Gas ceiling unit heaters: vented beats ventless in a garage
Both gas units here are vented appliances, and that is the right call for a workshop. A vented unit heater pulls combustion air from the room and exhausts the flue outdoors, which is what makes it legal and safe in a space where you also run a vehicle. Every gas installation needs a licensed fitter, adequate combustion air, and a working carbon monoxide detector.
A ventless gas heater in a garage is the wrong product for the application, regardless of how the listing is worded. If you cannot vent through the roof, the answer is an electric ceiling unit, not a different flue configuration.
Mounting height, clearance and heat stratification
Ceiling mounting is what keeps your floor clear, but it also puts the warmest air exactly where you are not standing. Aim the louvers downward and forward toward your work zone, and keep the clearance the manual specifies from joists and from storage on the floor below. The gas units need far more headroom: the Mr. Heater lists a 10 foot minimum ceiling with 8 feet of clearance beneath it, which rules it out of many residential garages.
Above a vehicle, check the height before you drill. Park a tall van or a truck with a roof rack under the unit and you may need to hang the heater higher or shift it over the bench instead. Once the air is warm, a low ceiling fan on a low setting is a cheap way to keep the ceiling pocket from stagnating; our ceiling fan picks cover the sizes that suit a workshop bay.
Noise matters more than most buyers expect
Forced-air units put a fan between you and everything else in the shop. Two of the units here publish a noise figure or describe themselves as quiet, but the practical advice from workshop owners is the same: mount the unit away from the bench you sit at, and pick a model with a fan delay and multiple fan speeds so you can run the blower low when the elements are off.
Frequently Asked Questions
What is the best heater for a garage workshop?
For most workshops the best heater is a hardwired 240V fan-forced ceiling unit sized at 10 watts per square foot if the bay is insulated, or 20 watts per square foot if it is drafty. The Dr. Infrared DR-975 at 7500 watts covers roughly 800 square feet and is our top pick for a one-car or insulated two-car bay. A bay over 1200 square feet, or a structure that is uninsulated, is better served by a gas unit heater such as the 50000 BTU Mr. Heater.
How many Btus do I need to heat a 24×24 garage?
A 24 by 24 garage is 576 square feet. In an insulated bay, plan on about 5,750 watts, which is roughly 19,600 BTU, so a 5000W electric unit or a 25,000 to 30,000 BTU gas heater will do. In an uninsulated bay double that to about 11,500 watts or 40,000 BTU of gas output. Insulating the walls and ceiling before buying a larger unit is the cheaper path to the same result.
What is the most economical way to heat a workshop?
Insulation first, then a thermostat-controlled unit with multiple power levels. Every watt of insulation you add cuts the hours the heater runs, and units with ECO modes or timers such as the TEMPWARE 5000W or the InoKraft 7500W stop drawing full power once the bay reaches setpoint. A small radiant or infrared unit at the bench can carry personal comfort while the big unit stays off.
What is the best propane ceiling heater for a garage?
The Mr. Heater F260550 is the strongest propane option here, delivering 50000 BTU over up to 1667 square feet and including a natural gas to propane conversion kit. It is vented, works with standard 24V or Wi-Fi thermostats, and includes a high temperature shut-off and flame sensor. Installation requires a licensed gas fitter, roof venting, a vent kit and a carbon monoxide detector.
Is it cheaper to heat a garage with propane or electric?
It depends on the size of the bay and your local rates. Electric resistance converts nearly every watt it consumes into heat, so a 7500 watt unit costs about 7.5 kWh for each hour it runs. Propane delivers roughly 91,500 BTU per gallon, and one gallon burned per hour outpaces anything an outlet circuit can supply, so gas wins in a large or uninsulated space. In a small insulated bay, electric is simpler and quieter.
Is it better to oversize a garage heater?
A modest oversize is fine and often helpful, because a larger unit on a thermostat in a smaller bay cycles off more often and the fan even spreads the heat. A large oversize is wasteful: a 10000 watt unit in a small insulated room pulls full power every cycle to warm air that is already at setpoint. Size to 10 watts per square foot insulated or 20 uninsulated and go one tier up at most.
How high should a ceiling mounted garage heater be mounted?
For 240V electric fan-forced units, follow the clearance minimums in the manual and hang the unit high enough that the downward airflow reaches the occupied zone, typically 7 to 9 feet above the floor in a standard bay. Gas unit heaters need far more: the Mr. Heater F260550 specifies a minimum 10 foot ceiling with 8 feet of clearance below the base of the heater. Always check the specified clearances to joists and to stored materials.
Which Ceiling Mounted Garage Heater Should You Buy?
The Dr. Infrared DR-975 is the ceiling mounted garage heater most workshop owners should buy, because 7500 watts of hardwired 240V output covers an insulated bay up to about 800 square feet and it mounts on a wall when the joists are in the way. The Comfort Zone CZ220BK is the smarter money if 5000 watts is enough for your bay, and the CZ230ERBK is the one to buy if you want a digital thermostat, a remote and a 12-hour timer.
Go bigger, and change fuel, when the bay exceeds roughly 1200 square feet or the building is uninsulated. The Mr. Heater F260550 covers up to 1667 square feet on propane or natural gas, and it needs a 10 foot ceiling plus a licensed gas fitter. The Heatstar MH25NG covers the opposite case, a fixed bench where radiant overhead heat is enough. For 120V shops with no circuit to spare, the Shinic 2-pack warms the bench, and the Dr. Infrared DR218 handles a small corner.
Whatever you choose, size the output before you choose the brand, and get the 240V circuit quoted before you buy the heater. Every pick in this guide earns its place in a workshop where the floor belongs to the work.
