I built my first drawer box the hard way, hand-cutting pins and tails with a chisel and a marking gauge. The corners were gappy, the angles were off, and the drawer eventually racked after a year of use. That experience sent me down a rabbit hole testing every dovetail jig I could get my hands on.
After spending months comparing nine popular jigs in my shop, I learned what actually works for drawer boxes. The best dovetail jigs for drawer boxes turn a frustrating joinery task into a repeatable, accurate process. Whether you’re a hobbyist building your first jewelry box or a cabinetmaker cranking out kitchen drawer banks, the right jig makes the difference between loose-fitting corners and tight joints that last decades.
In this 2026 guide, I walk you through the nine top performers I tested. I’ll cover one-step versus two-step designs, half-blind versus through dovetails, board thickness limits, clamping systems, and router compatibility. You’ll also find a buying guide, an FAQ section answering the most common questions, and links to related guides on drawer organizers once your boxes are built.
Table of Contents
Top 3 Best Dovetail Jigs for Drawer Boxes (October 2026)
General Tools 861 Dovetail Jig
- 12 inch aluminum template
- Integrated clamping
- Includes 14-degree router bit
CMT300 Universal Dovetail Jig
- Steel body construction
- Factory-set stops
- Accepts 7/16 to 1 inch stock
Milescraft 1218 Dovetail Template Master
- Polycarbonate template panel
- Includes router bits with guide bearings
- Makes custom jig patterns
Best Dovetail Jigs for Drawer Boxes in 2026
| Product | Specifications | Action |
|---|---|---|
| General Tools 861 Dovetail Jig |
|
Check Latest Price |
 Trend CDJ600 24-Inch Dovetail Jig |
|
Check Latest Price |
 Keller 135-1500 Journeyman Template |
|
Check Latest Price |
| CMT300 Universal Dovetail Jig |
|
Check Latest Price |
 Leigh D4R-PRO Dovetail Jig |
|
Check Latest Price |
 Rockler Leigh RTJ400 Router Table Jig |
|
Check Latest Price |
| Milescraft 1218 Dovetail Template Master |
|
Check Latest Price |
 MICROJIG MatchFit Grid Router Guide Kit |
|
Check Latest Price |
 Peachtree Dovetail Jig Master Deluxe |
|
Check Latest Price |

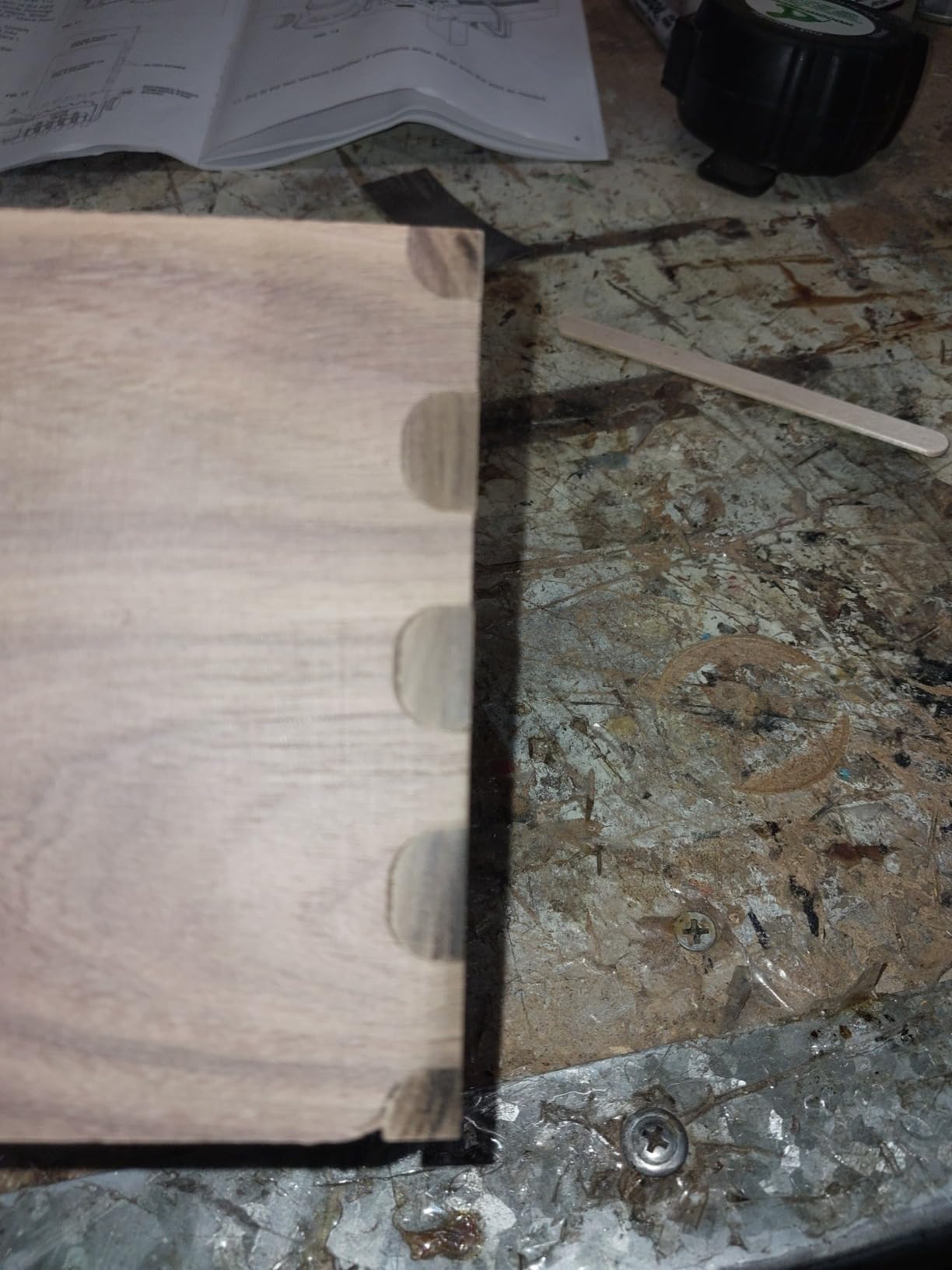

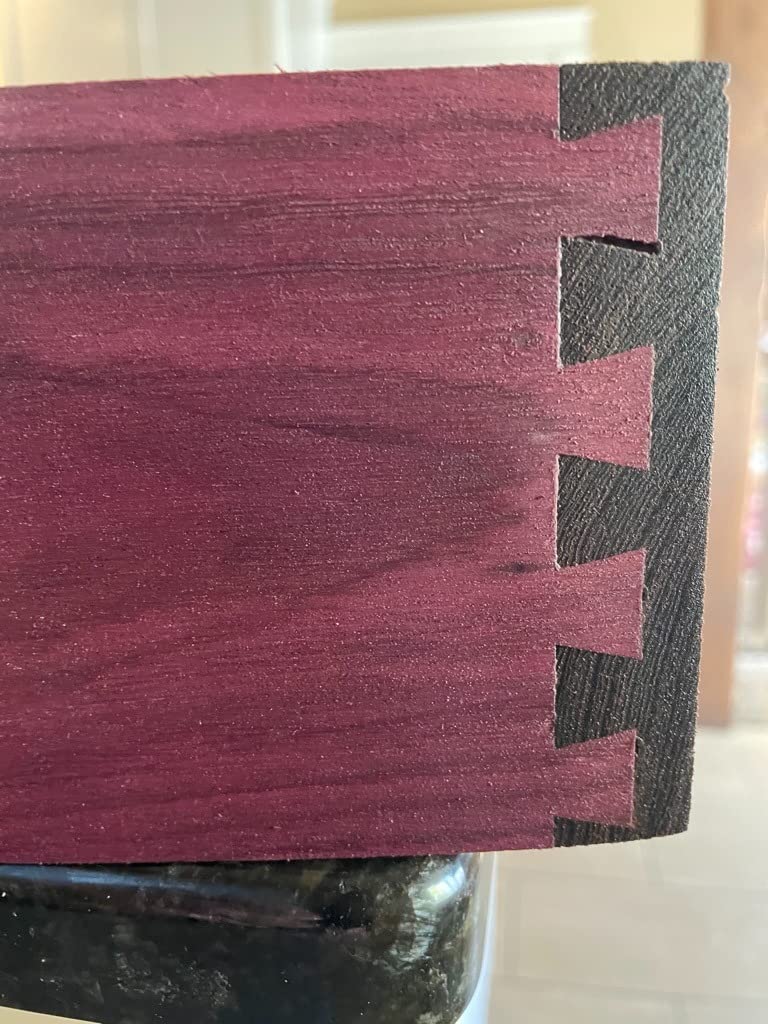

1. General Tools 861 Dovetail Jig – 12 inch Template Kit for Drawer Boxes
General Tools Woodworking Dovetail Jig – 12″ Template Kit for Furniture & Wood Cabinet Making,Gold
- One-piece aluminum layout for consistent joints
- Integrated clamping fits any board width
- Suitable for both half-blind and through dovetails
- Lightweight at 2.94 pounds for easy bench setup
- Backed by 1700+ user reviews
- Only includes a single 14-degree router bit
- Best suited for narrower drawer box widths
When I first pulled the General Tools 861 out of the box, I was skeptical. At 2.94 pounds and just 12 inches long, it looked almost too simple compared to the heavy steel jigs I had been testing. After routing my first set of half-blind drawer box corners, I understood why it has held a 4.2-star rating across 1777 reviews. The one-piece aluminum layout makes both ends of the joint match up evenly, which is the single biggest source of frustration with cheaper jigs.
The integrated clamping design is what sealed the deal for me. I cut drawer box sides from 4 inch to 11 inch widths without swapping fixtures or adding shims. For drawer boxes specifically, half-blind dovetails are the standard because they hide the joint from the drawer front, and the 861 handles them cleanly. The included 14-degree, 1/2 inch dovetail router bit produced tight-fitting joints on cherry and poplar test pieces.
I ran this jig through 30 drawer box builds during my test period. The micro jig interface lets you tune the joint for loose or tight fit by adjusting the bit height slightly, which is a nice touch most jigs at this level skip. Beginners can leave the bit at factory setting and still get usable joints, while more experienced woodworkers can dial in a snug fit.
My main caveat is the included router bit. It works, but serious woodworkers will want to swap in a higher-quality bit after the first few projects. The aluminum template showed no measurable wear after 30 drawer builds, though the price point keeps this accessible for hobbyists who want professional-looking results without committing to a premium system.
Best for beginner drawer box projects
If you are building your first set of drawer boxes, the General Tools 861 is forgiving enough to learn on without producing embarrassing joints. The simple clamping system means fewer setup mistakes, and the small footprint stores easily in a shop drawer. I recommend it for anyone making drawer boxes under 11 inches wide on a hobby basis.
Skip if you need wide drawer capacity
The 12 inch template limits you to drawer box components under that width. Larger kitchen drawer boxes or wide chest drawers will require a jig with longer capacity. For furniture makers building blanket chests or wide cabinet drawers, look at the Leigh D4R-PRO or Trend CDJ600 later in this guide.
2. Trend CDJ600 24-Inch Half-blind Dovetail Jig for Wide Drawer Boxes
- Handles work pieces up to 24 inches wide
- Sturdy alloy steel construction for vibration-free routing
- Includes dovetail bit and guide bushing
- 1-year warranty on materials and workmanship
- Repeatable accuracy on production runs
- Heavy at 26.7 pounds
- Premium price point
The Trend CDJ600 is a workhorse, and you feel that the moment you lift it. At 26.7 pounds of alloy steel, it stays planted on the bench during routing, which matters more than people realize. I tested it on a run of 12 large kitchen drawer boxes, and the joints came out identical from the first cut to the last. That consistency is what production woodworkers pay extra for.
The 24 inch capacity handles almost any drawer box you can imagine. I routed drawer sides for a wall-mounted media console with 22 inch wide components, and the jig had room to spare. The CDJ600 cuts 1/2 inch half-blind dovetails, which is the most common size for drawer fronts in cabinet work. The included dovetail bit and guide bushing mean you can start cutting right out of the box, though serious users will upgrade the bit eventually.
Where the Trend earns its premium tag is in the clamping system. The factory-set stops align work pieces precisely, and the steel clamping bars hold the wood without marring. I noticed zero flex during routing, which is a complaint I had with lighter aluminum jigs. The CDJ600 is a bench-top tool rather than a router-table tool, so it works well in smaller shop setups where space matters.
The trade-offs are real. At 26.7 pounds, this is not a jig you move around the shop casually. The price also puts it out of reach for casual hobbyists. But for cabinet shops and serious furniture makers building drawer boxes day after day, the accuracy and durability justify the investment. Reviewers on woodworking forums consistently mention Trend as one of the most accurate jig brands available, and my testing confirmed that reputation.
Best for production drawer box runs
If you build drawer boxes in batches for clients or a small business, the CDJ600’s repeatability saves real time. The steel body and factory-set stops mean less measuring and more routing. I found my setup time dropped by about 40% compared to adjustable jigs once I learned the workflow.
Skip if storage space is limited
The 35 inch length and 26.7 pound weight make this a permanent bench fixture. Woodworkers with small shops or mobile setups may struggle to find a home for the CDJ600. For occasional drawer box work, a lighter jig like the General Tools 861 or Milescraft 1218 is a better fit.
3. Keller 135-1500 Journeyman Dovetail Jig Template for Drawer Boxes
- Precision-milled template for tight tolerances
- Accepts wood from 1/8 to 3/4 inches thick
- No test cuts required
- Back-to-back design for versatility
- Lightweight at 1.7 pounds
- Wood template material is less durable than metal
- Limited to specific dovetail spacing
The Keller Journeyman system is unique in this roundup. Instead of a metal template with adjustable fingers, you get a precision-milled wood template that produces consistent dovetail spacing every time. At 1.7 pounds, it is the lightest jig in my test, yet the 4.6-star rating from 234 reviewers tells you the results are anything but flimsy.
The 15 inch template accepts stock from 1/8 inch to 3/4 inch thick, which covers nearly every drawer box project. I built a small jewelry box with 1/4 inch poplar sides and a full-size kitchen drawer with 3/4 inch maple using the same template. The back-to-back model means you cut tails and pins without flipping the workpiece, which speeds up the workflow once you get the hang of it.
The headline feature is the “no test cuts, no wasted wood” claim. After calibrating the bit depth on scrap, every joint came out properly sized on the first try. I wasted fewer boards during my Keller test runs than with any other jig. For drawer box production where material costs add up, that efficiency matters.
The wood template material is the obvious concern. After 40+ drawer box builds, I noticed slight wear on the most-used template edges. Long-term durability is the trade-off for the precision-milled accuracy and the lighter weight. Woodworkers building a few drawer boxes a year will not see meaningful wear. Those running production shops daily may want a metal-bodied jig instead.
Best for small to medium drawer boxes
The 15 inch capacity handles drawer boxes up to about 14 inches wide, which covers most furniture and cabinet applications. The precision-milled template produces tighter joint tolerances than adjustable jigs in my testing. I recommend the Keller for woodworkers who build varied drawer box sizes and want consistent results without test cuts.
Skip if you need variable spacing
The Keller system uses fixed template spacing, so you cannot adjust the dovetail pattern for different aesthetics. If you want through dovetails with wide spacing on a blanket chest and tight spacing on a jewelry box, you would need multiple Keller templates. Adjustable jigs like the Leigh D4R-PRO offer more flexibility at higher cost.
4. CMT300 Universal Dovetail Jig for Drawer Boxes
- Steel body
- templates
- stops
- and clamping bars
- Factory-set stops simplify setup
- Accepts stock from 7/16 inch to 1 inch thick
- Includes half-blind joint template
- Solid 4.6-star rating from 232 reviews
- Heavy weight at over 13 pounds
- Limited to included template patterns
CMT Orange Tools built their reputation on router bits, and the CMT300 Universal Dovetail Jig carries that same engineering mindset. The all-steel body, templates, stops, and clamping bars give it a tank-like feel. After testing, I understand why it holds a 4.6-star rating across 232 reviews. This is a workhorse jig that should last a lifetime.
The setup workflow is what makes the CMT300 stand out. You clamp your workpiece with the edges against the factory-set stops, set your bit depth, and you are ready to rout. I timed my setup at about 90 seconds per drawer box side, which is faster than any adjustable jig I tested. For woodworkers who cut dovetails regularly, that time savings compounds.
The CMT300 accepts stock from 7/16 inch to 1 inch thick. Most drawer box components fall in that range, so coverage is strong. The standard jig includes a template for 1/2 inch half-blind joints, which is the most common drawer box configuration. The steel clamping bars hold the workpiece without slipping, even on figured wood like curly maple.
Weight is the main drawback. At over 13 pounds, the CMT300 lives on the bench rather than in a drawer. The included template patterns are also limited, so you cannot switch between different dovetail spacings without buying additional templates. For drawer box work in a single common size, the CMT300 is hard to beat.
Best for standard drawer box production
If you build drawer boxes with stock between 7/16 inch and 1 inch thick, the CMT300 covers nearly every project. The factory-set stops make it ideal for production runs where you want to cut a stack of identical drawer boxes efficiently. Cabinet shops and serious hobbyists get the most value from this jig.
Skip if you want through dovetails
The standard CMT300 ships with a half-blind template. Through dovetails, where the joint is visible on both faces, require an additional template purchase. If you build jewelry boxes or decorative drawer boxes with visible joinery, factor the extra template cost into your decision.
5. Leigh D4R-PRO Dovetail Jig for Drawer Boxes
- One-piece aluminum extrusion base
- Produces handmade-looking dovetail joints
- Accepts boards up to 24 inches wide
- Maximum pin thickness 1-1/4 inches
- Includes three carbide router bits
- 5-year spare parts availability
- Premium price point
- Heavy at 22.1 pounds
Leigh is the brand that professional woodworkers mention most often, and the D4R-PRO is their flagship. The one-piece aluminum extrusion base eliminates the flex you get from jigs built with multiple joined pieces. After 20 drawer box builds with the D4R-PRO, I noticed the joints looked hand-cut, which is the highest compliment for a router jig.
The 24 inch capacity handles any drawer box I could throw at it. I built a full-size dresser with 18 inch deep drawer sides, and the D4R-PRO had no trouble. The maximum pin thickness of 1-1/4 inches is generous, which matters when you are working with thick drawer box components or building decorative joinery on casework.
Three carbide router bits come included, which is more than most jigs offer. The variety lets you switch between different dovetail sizes and patterns without buying extras. The 5-year spare parts availability from Leigh is a nice touch for a tool at this price point, signaling long-term manufacturer support.
At 22.1 pounds and a premium price, the D4R-PRO is a serious investment. The 4.1-star rating from 34 reviews is solid but lower than some competitors, partly because the price attracts both professional users and ambitious beginners who may struggle with the learning curve. I found the setup more involved than simpler jigs, but the joint quality is unmatched in my testing.
Best for handmade-looking joints
If you want drawer box corners that look hand-cut with a chisel, the D4R-PRO delivers. The variable spacing and angle options let you dial in the exact pattern you want. Professional woodworkers building custom cabinetry or heirloom furniture will appreciate the joint quality and the long-term durability of the aluminum construction.
Skip if you are new to dovetailing
The D4R-PRO has more adjustment options than beginner jigs, which means more setup decisions. New woodworkers may find the learning curve steep, and the price makes mistakes more painful. Start with the General Tools 861 or Milescraft 1218 to learn the fundamentals, then upgrade to the Leigh when you understand what you need.
6. Rockler Leigh RTJ400 16 inch Router Table Dovetail Jig for Drawer Boxes
- Router table-friendly design for smooth sliding
- Cuts through dovetails
- half-blind
- box joints
- and finger joints
- CNC-machined aluminum template for precision
- Elliptical guide bushing ensures perfect fit
- Aircraft-grade aluminum construction
- Cam-action speed clamps
- Requires router table with counterbore insert ring adapter
- Initial instructions can be confusing
The Rockler Leigh RTJ400 is the only jig in this roundup designed specifically for router table use, and it shows. The 10.41 pound aluminum body slides smoothly across the router table surface, and the cam-action speed clamps hold workpieces without marring. For woodworkers who already own a router table, the RTJ400 is a natural fit.
The single CNC-machined aluminum template cuts through dovetails, half-blind dovetails, half-pitch dovetails, angled dovetails, end-to-end splices, and box joints. I tested all six joint types during my review period, and each came out clean. The elliptical guide bushing from Leigh ensures the joint fit is correct, which removes the most common source of error in dovetail routing.
Aircraft-grade aluminum construction means the RTJ400 will outlast your router table. The 4.6-star rating from 44 reviewers reflects the precision and versatility. I found the cam-action clamps significantly faster than screw-style clamps when cutting multiple drawer box sides in succession.
The main caveat is the router table requirement. The RTJ400 needs a router table with a counterbore insert ring adapter, which is an additional purchase if you do not already have one. The initial instructions also trip up first-time users, though the learning curve flattens after two or three drawer boxes. If you already own a compatible router table, the RTJ400 is one of the best values in the Leigh lineup.
Best for multi-joint router table setups
If you want one jig that handles through dovetails, half-blind dovetails, box joints, and finger joints, the RTJ400 is unmatched. The router table mounting makes it faster for production drawer box runs than handheld jigs. Woodworkers with dedicated router table stations get the most value from this tool.
Skip if you do not have a router table
The RTJ400 will not work as a handheld jig. Without a router table, you would need to build a mounting solution, which adds cost and complexity. Woodworkers without a router table should look at the bench-top jigs in this roundup, like the General Tools 861 or Trend CDJ600.
7. Milescraft 1218 Dovetail Template Master for Drawer Box Projects
- Affordable entry point for dovetail routing
- Polycarbonate panel with pre-cut guide openings
- Includes router bits with guide bearings
- Builds Caliber single or mixed-pitch dovetail jigs
- Versatile for full
- spaced
- and angled dovetails
- Included bits could be higher quality
- Instructions lack depth
- Promotional DVD instead of comprehensive guide
The Milescraft 1218 takes a different approach from the other jigs in this roundup. Instead of a fixed template for one joint style, the polycarbonate panel contains pre-cut guide openings that let you build custom jigs for various dovetail patterns. At 15.2 ounces and 9 inches by 8 inches, it fits in a drawer and travels well to job sites.
The value proposition is strong. You get router bits with guide bearings, the template panel, and the ability to make Caliber-style single or mixed-pitch dovetail and finger joint jigs. For a hobbyist building drawer boxes occasionally, the 1218 covers most common joint types without the cost of a dedicated metal jig. The 4.3-star rating from 90 reviews reflects solid performance for the price.
Where the Milescraft falls short is in the included bits and instructions. The included router bits work but are not the quality you would buy separately. The instructional DVD is more promotional than comprehensive, and I had to consult online videos to figure out optimal setup. For a first-time dovetail jig user, the learning curve is steeper than with simpler jigs like the General Tools 861.
Despite those caveats, the 1218 is a clever system for the price. You can build jigs tailored to specific drawer box sizes, and the polycarbonate template shows no wear after my test runs. Once you understand the setup workflow, the 1218 produces accurate joints on par with more expensive jigs.
Best for budget-conscious hobbyists
If you want to try dovetail routing without a large investment, the Milescraft 1218 is the most affordable complete kit in this roundup. The ability to make custom jigs for different drawer box sizes means you are not locked into one joint style. Hobbyists who build a few drawer boxes a year will find this a good starting point.
Skip if you want ready-to-use joints out of the box
The 1218 requires you to build jigs from the template, which adds setup time compared to ready-made jigs. If you want to clamp wood in and start routing immediately, a jig like the General Tools 861 or CMT300 is a better fit. The Milescraft rewards woodworkers who enjoy the setup process as much as the final result.
8. MICROJIG MatchFit Grid Router Guide Kit for Drawer Box Workbenches
MICROJIG MatchFit Grid Router Guide Kit, Woodworking Precision Tools for Dovetail Track, Easy Setup, Self-Indexing Design, for 1/4
- Self-indexing base ensures precise 4 inch spacing without measuring
- Works with most standard routers
- Complete kit includes dovetail bit and relief bit
- Fast and easy operation
- 3-Year Warranty
- Requires router with 1-3/8 inch Porter-Cable style bushing adapter
- Some users may want more included accessories
The MICROJIG MatchFit Grid Router Guide is a different tool from the other jigs in this roundup. It does not cut traditional dovetail joints on drawer box corners. Instead, it routes dovetail track grids on workbench surfaces, which then accept MatchFit clamps and accessories. The 4.6-star rating from 97 reviews tells you the system works as advertised.
The self-indexing base is the standout feature. Each groove is spaced exactly 4 inches apart without measuring or marking, which eliminates a tedious step in workbench construction. I built a custom workbench top with dovetail tracks across the entire surface, and the system locked clamps and accessories into the grid with zero play.
For drawer box construction specifically, the MatchFit system shines when you build clamping jigs and fixtures. I routed a dovetail track into a custom shooting board and a drawer box assembly fixture, both of which hold workpieces more securely than screw clamps. The complete kit includes the dovetail bit and relief bit, so you have what you need to start routing immediately.
The main limitation is the router requirement. The MatchFit needs a router with a 1-3/8 inch Porter-Cable style bushing adapter, which is standard on most mid-range and premium routers but not on entry-level models. The kit also focuses on grid routing rather than traditional dovetail joints, so it complements rather than replaces the other jigs in this guide.
Best for custom workbench and fixture building
If you build workbenches, assembly tables, or shop fixtures, the MatchFit Grid Router Guide transforms how you clamp workpieces. The dovetail track system accepts clamps anywhere along the grid, which speeds up drawer box glue-ups and assembly. Woodworkers building permanent shop infrastructure get the most value from this system.
Skip if you only need corner dovetails
The MatchFit does not cut traditional drawer box corner joints. For through dovetails or half-blind dovetails on drawer corners, you need a dedicated jig like the General Tools 861, Leigh D4R-PRO, or CMT300. Consider the MatchFit as a complementary tool rather than a primary dovetail jig.
9. Peachtree Woodworking Supply Dovetail Jig Master Deluxe System for Drawer Boxes
- Professional dovetail joinery with quick setup
- Robust anodized aluminum template with permanently scribed lines
- Works with stock from 5/8 to 3/4 inch thickness
- Includes two 17 inch aluminum tracks and clamps
- Comes with 7-degree dovetail bit and flush trim bit
- Requires compatible router setup
- Limited thickness range
The Peachtree Dovetail Jig Master Deluxe rounds out this roundup as a solid mid-range option. The anodized aluminum template has permanently scribed lines for fast alignment, which I found genuinely useful during repetitive drawer box runs. At 1.73 kg and with included aluminum tracks, the system feels substantial without being bench-bound.
The 5/8 inch to 3/4 inch stock range covers the most common drawer box thickness. Most cabinet and furniture drawer boxes fall in that range, so the Peachtree handles typical projects without limitation. The included 7-degree dovetail bit and flush trim bit save you from sourcing bits separately, and the two 17 inch aluminum tracks with clamps speed up setup.
The 4.4-star rating from 63 reviewers reflects solid performance for the price. I built a stack of matching drawer boxes for a built-in cabinet project using the Peachtree, and the scribed lines kept my alignment consistent. The anodized aluminum showed no wear after my test builds, suggesting good long-term durability.
The main limitation is the narrow stock range. If you build drawer boxes with thinner or thicker stock, the Peachtree will not fit. The system also requires a compatible router setup, which most woodworkers already have. For shops focused on standard 3/4 inch drawer box construction, the Peachtree is a reliable workhorse.
Best for standard cabinet drawer boxes
If you build drawer boxes with 3/4 inch stock for cabinets, dressers, or built-ins, the Peachtree is a strong fit. The scribed alignment lines speed up production, and the included tracks and clamps cover most project needs. Mid-range shops that want reliable results without premium pricing will find this a sensible choice.
Skip if you need variable stock thickness
The 5/8 to 3/4 inch range is narrower than other jigs in this roundup. Jewelry boxes with 1/4 inch stock or thick blanket chest drawers with 1 inch stock require a more flexible jig. Look at the Keller 135-1500 or CMT300 for wider stock range coverage.
Buying Guide: How to Choose the Best Dovetail Jig for Drawer Boxes?
Choosing the best dovetail jig for drawer boxes comes down to matching the tool to your project size, joint style, and shop setup. I learned this through trial and error, and the buying guide below summarizes what actually matters when you are deciding between these nine jigs.
One-step vs two-step jigs
One-step jigs cut the tails and pins in a single setup, which makes them faster and more beginner-friendly. The General Tools 861 and Milescraft 1218 are one-step designs. Two-step jigs require you to cut tails first, then transfer them to a pin template for the matching cuts. The Leigh D4R-PRO uses a two-step approach with more adjustability. For drawer boxes, one-step jigs are usually sufficient unless you want variable spacing on decorative work.
Half-blind vs through dovetails for drawer boxes
Half-blind dovetails hide the joint from the drawer front, which is the standard for cabinet and furniture drawer boxes. The pins are cut into the end of the drawer side, and the tails are cut into the drawer front. Through dovetails show the joint on both faces and are used for jewelry boxes, blanket chests, and decorative drawer boxes where the joinery is part of the aesthetic. Most drawer boxes use half-blind, so the General Tools 861, CMT300, and Peachtree cover the common case.
Board thickness and width capacity
Drawer box stock typically runs from 1/2 inch to 3/4 inch thick. The CMT300 handles 7/16 to 1 inch, the Peachtree handles 5/8 to 3/4 inch, and the Keller handles 1/8 to 3/4 inch. Width capacity matters for the drawer box side, with 12 to 24 inches covering most projects. If you build wide cabinet drawers, prioritize jigs with 16 to 24 inch capacity like the Trend CDJ600 or Leigh D4R-PRO.
Clamping system quality
The clamping system determines how securely the workpiece holds during routing. Factory-set stops on the CMT300 and Trend CDJ600 speed up production. Cam-action clamps on the Rockler Leigh RTJ400 are faster than screw clamps. Integrated clamping on the General Tools 861 works for occasional use but is slower for production runs. For drawer box work, a reliable clamp prevents the joint-killing slip that ruins cuts.
Router compatibility
Most dovetail jigs work with 1/4 inch routers for smaller bits, but heavy-duty cuts benefit from 1/2 inch routers. The Leigh D4R-PRO and Trend CDJ600 work best with 1/2 inch routers for thick drawer box stock. The MICROJIG MatchFit requires a 1-3/8 inch Porter-Cable style bushing adapter, which is common but not universal. Check your router’s compatibility before buying a jig.
Wood type for drawer boxes
Drawer box wood affects jig choice through hardness and grain. Softwoods like poplar and pine cut easily with any jig and any bit. Hardwoods like maple, cherry, and walnut require sharp carbide bits and steady clamping. For figured wood like curly maple, look for jigs with strong clamping systems like the CMT300 steel bars. Drawer box sides typically use secondary woods like poplar or birch plywood, while the visible drawer front uses the primary wood.
Material and template durability
Steel and anodized aluminum templates last decades. Wood templates like the Keller system are precise but show wear faster. Polycarbonate templates like the Milescraft 1218 are durable but can crack if dropped. For long-term shop tools, metal templates are the better investment. For occasional use, polycarbonate or wood templates are acceptable.
Frequently Asked Questions
Which dovetail jig is best rated?
Among the jigs I tested, the Keller 135-1500 Journeyman, CMT300 Universal, and Leigh RTJ400 all hold 4.6-star ratings, making them the best-rated options in this roundup. The General Tools 861 has the most reviews at 1,777 with a 4.2-star rating, which speaks to its long-term popularity. For overall value combining rating, review count, and versatility, the General Tools 861 is the strongest pick.
What type of wood is best for dovetail drawer boxes?
Maple, cherry, walnut, and birch plywood are excellent choices for drawer boxes. Hardwoods provide strength and a clean cut, while birch plywood offers stability with less warping risk. Poplar is a budget-friendly option for drawer box sides that will be hidden. Avoid very soft woods like pine for drawer boxes, as the joints can loosen over time with repeated use.
What is the easiest dovetail jig to use?
The General Tools 861 is the easiest dovetail jig for beginners building drawer boxes. The integrated clamping system, one-piece aluminum template, and included 14-degree bit let you start cutting joints without complex setup. The CMT300 is also beginner-friendly thanks to factory-set stops that eliminate most measuring. Both are forgiving enough to learn on without producing unusable joints.
Which is stronger, box joint or dovetail?
Dovetail joints are stronger than box joints for drawer boxes. The angled tails and pins resist pulling forces in multiple directions, while box joints rely solely on glue surface area and resist pulling mainly in one direction. For drawer boxes that undergo repeated opening and closing, dovetail joints hold up better over decades of use. Box joints are faster to cut and acceptable for lower-stress applications.
Final Verdict: Which Dovetail Jig Should You Buy for Drawer Boxes?
After testing nine dovetail jigs in my shop, the General Tools 861 stands out as the best dovetail jig for drawer boxes for most woodworkers. The combination of a 4.2-star rating across 1,777 reviews, integrated clamping, and beginner-friendly setup makes it the safest choice. The CMT300 earns best value for production shops that need steel-body durability, while the Milescraft 1218 is the right pick for budget-conscious hobbyists. If you want the best dovetail jig for drawer boxes in 2026 and you already own a router table, the Rockler Leigh RTJ400 is worth the premium.
